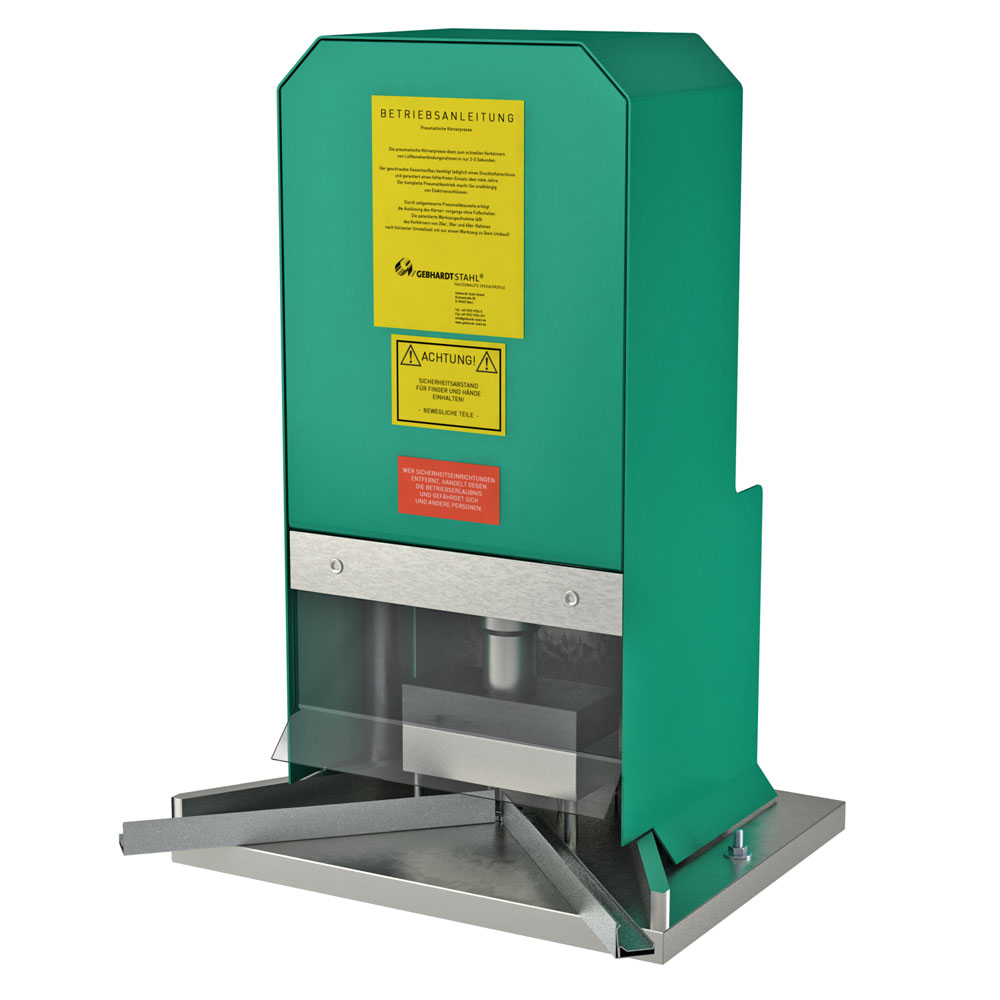

Pneumatic punch press

Art. Nr.: 350101000
  • The fully pneumatic mode of operation makes the punching machine independent of electrical connections
  • Due to time-controlled pneumatic components, the release takes place without a foot switch
  • The tool holder enables punching of 20, 30 and 40 mm frames after a very short changeover time with only one tool

    • €5,850.00

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The pneumatic punch press enables the non-corrosive permanent connection of flanges and corners within seconds. The device only requires a compressed air connection and guarantees a faultless use over many years. The fully pneumatic drive allows you to be independent of electrical connections. Time-controlled pneumatic components trigger the punching process without need for a foot switch.

    Only one tool holder for 20, 30 and 40 flange. Suitable for all Gebhardt-Stahl flanges.
    Width: 400 mm
    Depth: 400 mm
    Height: 600 mm
    Weight: 95 kg
    Compressed air output: 4 t
    Compressed air supply: 6 bar

    CrossSelling

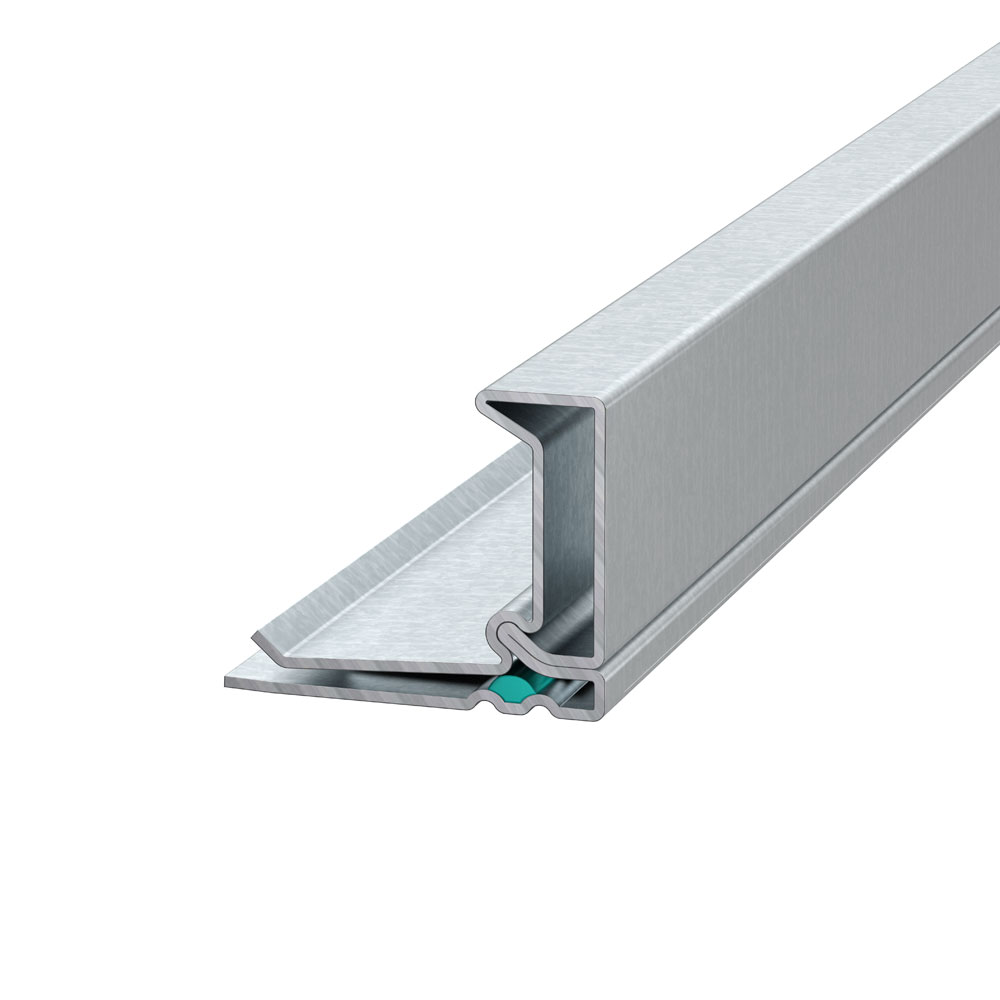

    Premium 20 D - 0,7 mm - BUTYL
    Premium 20 D - 0,7 mm - BUTYL Art. No: 301050410
    Galvanized 0.7 mm 20 2500 mm Butyl

    Content: 100 Metres (€380.00 / 100 Metre)

    Variants from €360.00
    €380.00 *

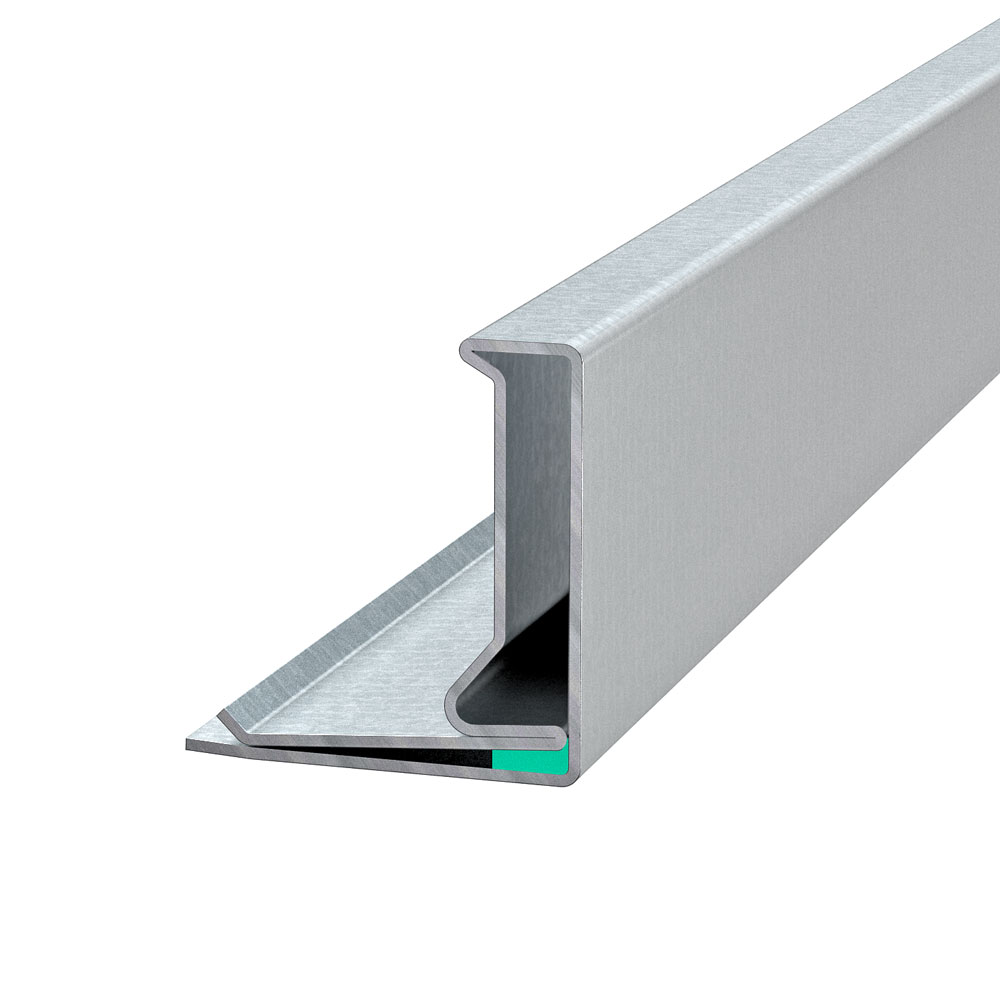

    P 30S C - 0,8 mm - BUTYL
    P 30S C - 0,8 mm - BUTYL Art. No: 301050415
    Galvanized 0.8 mm 30 5000 mm Butyl

    Content: 100 Metres (€680.00 / 100 Metre)

    Variants from €300.00
    €680.00 *
    L 20 AISI 304
    L 20 AISI 304 Art. No: 301500040
    AISI 304 0.7 mm 20

    Content: 100 Metres (€600.00 / 100 Metre)

    Variants from €260.00
    €600.00 *

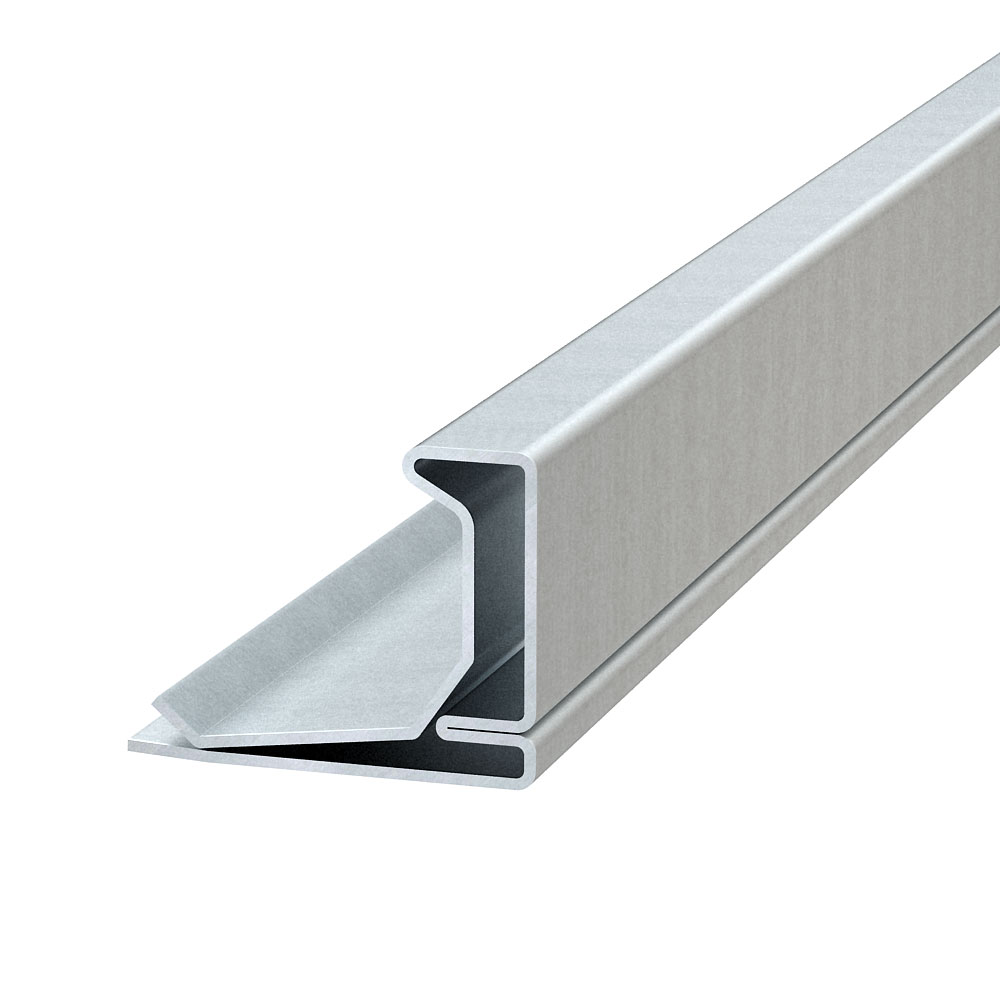

    S 20 - 0,7 mm
