P 30S C - 0,8 mm - BUTYL

Art. Nr.: 301050415
  • Suitable for air-tightness class C (TÜV-Nord certified) / ATC class 3
  • Butyl-sealant tested to DIN EN ISO 846
  • Butyl-sealant suitable for powder coating
    • Flange
    Length
    Material
    Material thickness
    Sealing compound

    €680.00 * / 100 Metres

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

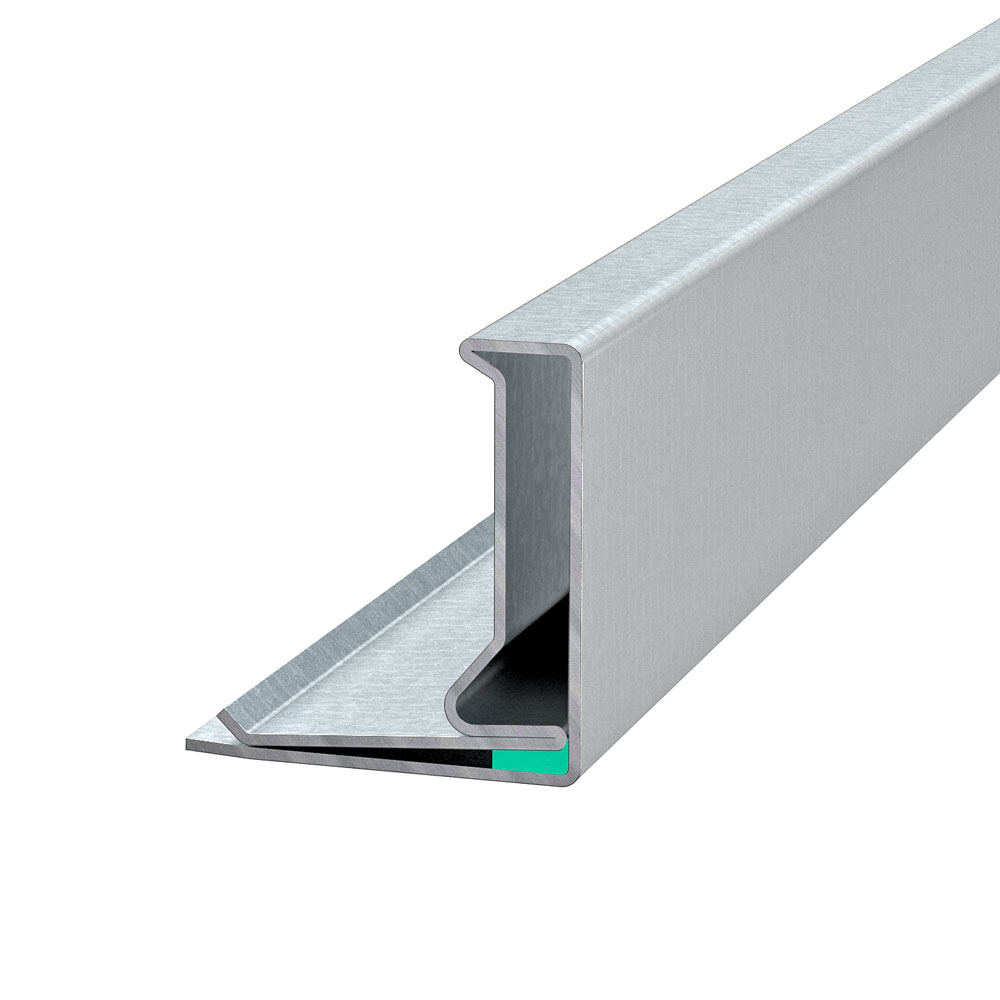

    The P 30S C flange made of galvanized steel, is the proven system for increased demands on tightness. Due to its unique geometry, the Gebhardt-Stahl "P" flange profile clearly stands out from other flange profiles available on the market. The 30° double profiling gives the frame profiles excellent stability and enables problem-free sheet insertion.

    The P 30S C flange has a length of 5,000 mm, is packed in bundles of 500 m and is always available from stock. In the variant with injected sealing compound, the "P" profiles are suitable for the realisation of ventilation systems of tightness class C (DIN EN 1507) without further sealing measures along the profile edge. Of course, the tightness has been tested by TÜV-Nord. The butyl sealing compound used complies with the specifications of VDI 6022, is solvent-free, silicone-free and permanently elastic.
    Material: Galvanized
    Approvals: ISO 846
    Material thickness: 0.8 mm
    Flange: 30
    Flange system: P-Flange
    Length: 5000 mm
    Sealing compound: Butyl
    Integrated sealant: Yes
    Suitable for powder coating: Yes

    Frequently asked questions

    Is the flange applicable in accordance with ISO 846?
    Yes, the sealant fulfils the requirements according to ISO 846 - A, C. The sealing compound is classified as very well disinfectable and fulfils the hygienic requirements for use in RLT systems according to VDI 6022, Sheet 1, Section 3.5.
    Is the injected butyl sealant suitable for powder coating?
    Yes, the Gebhardt-Butyl sealant injected into our "P" flange is suitable for powder coating.

    CrossSelling

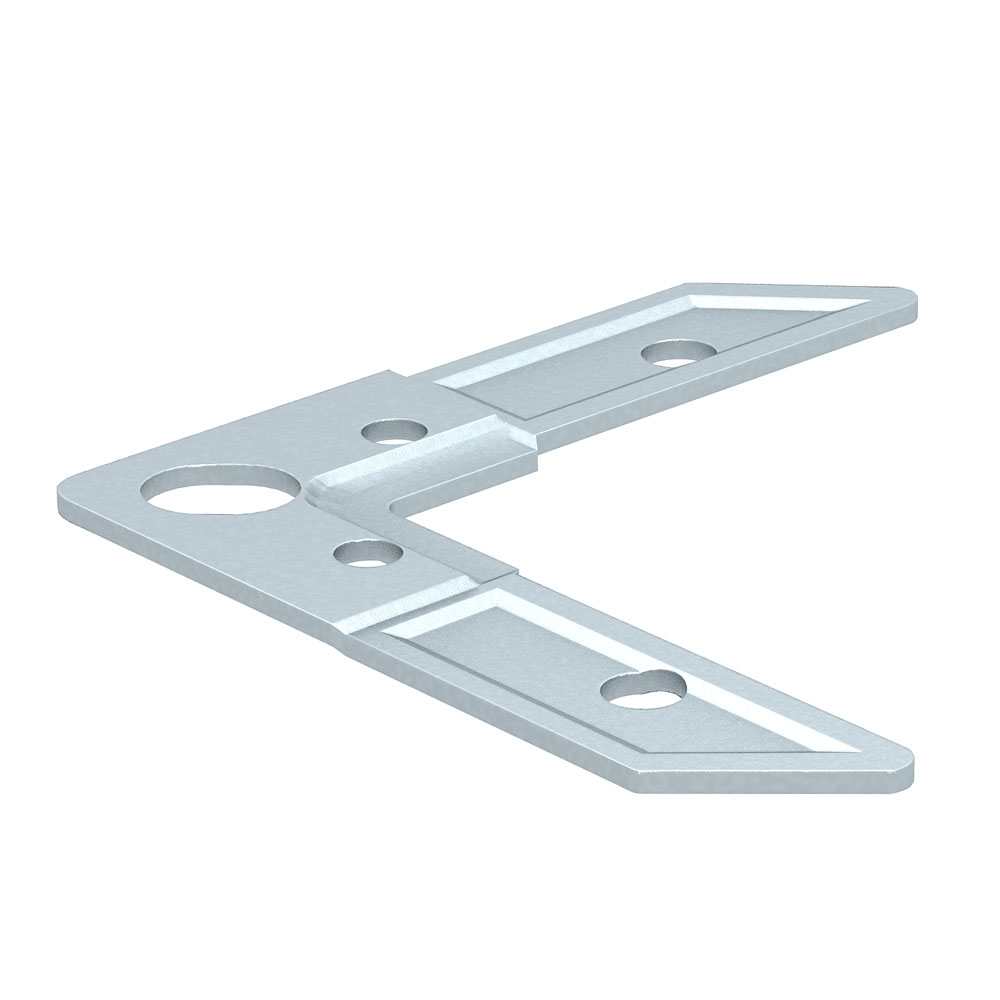

    SL 20/3
    SL 20/3 Art. No: 302010016

    Content: 100 Pieces (€50.00 / 100 Piece)

    €50.00 *

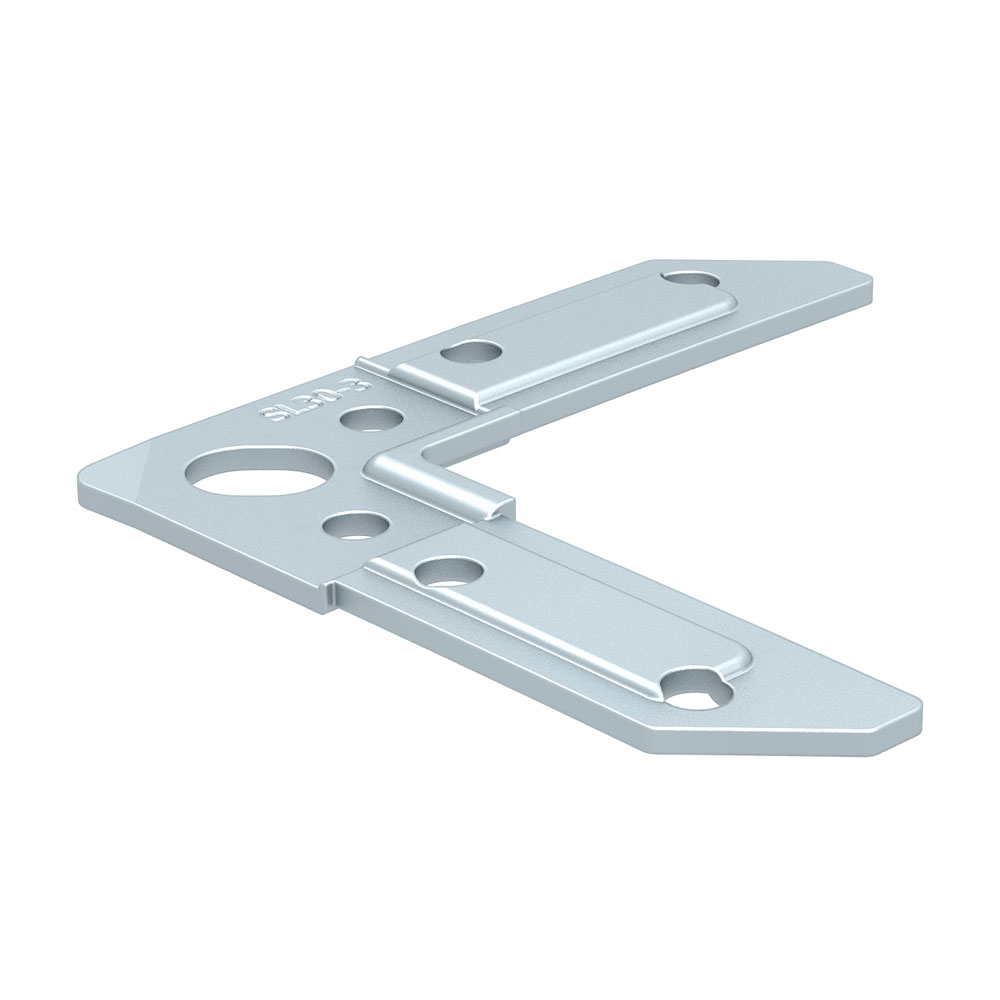

    SL 30/3
    SL 30/3 Art. No: 302070010

    Content: 100 Pieces (€70.00 / 100 Piece)

    €70.00 *

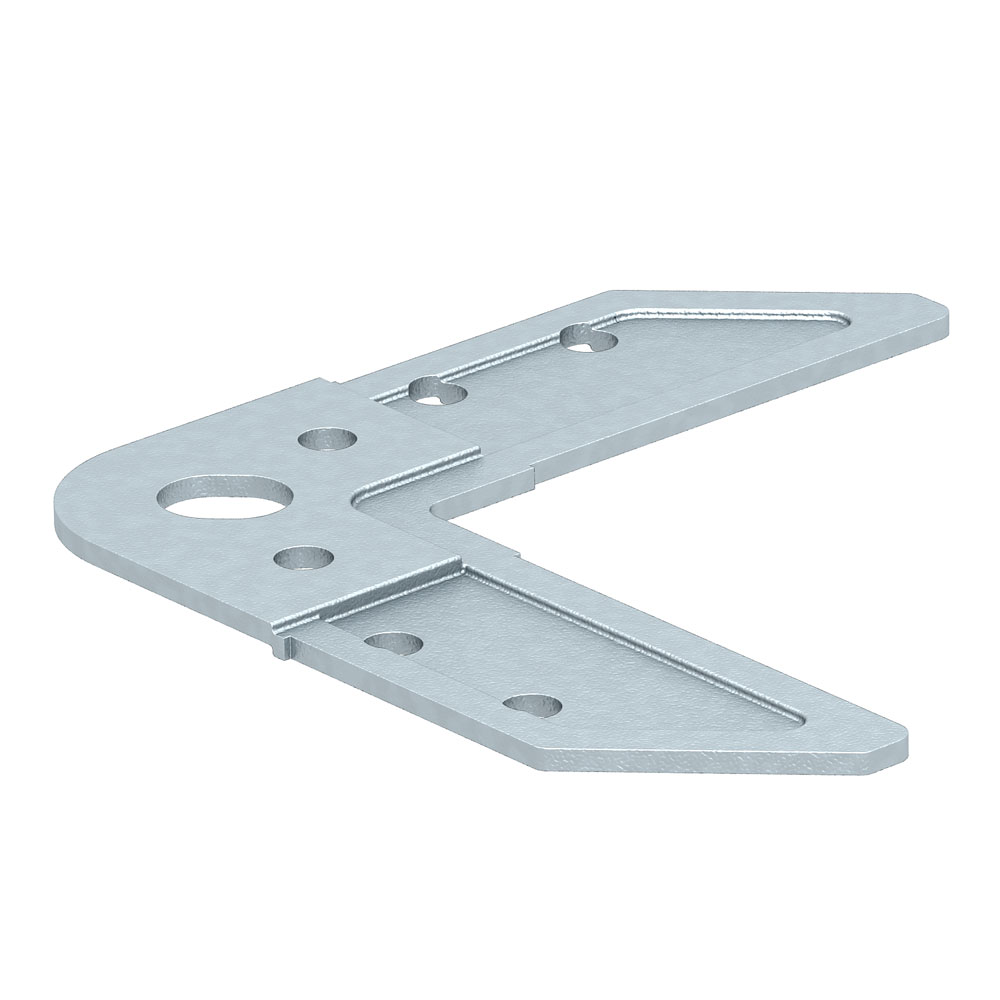

    P 40/V
    P 40/V Art. No: 302080011

    Content: 100 Pieces (€150.00 / 100 Piece)

    €150.00 *

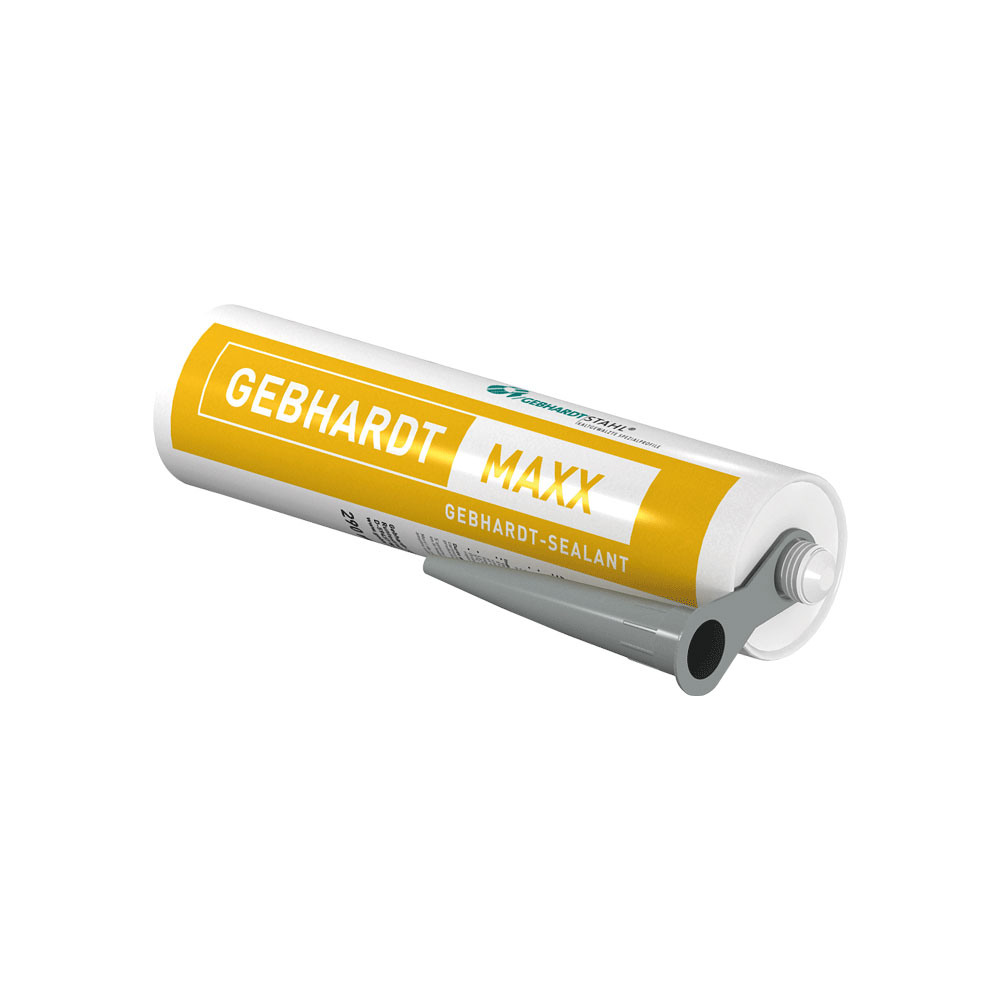

    Gebhardt-MAXX - 290 ml
