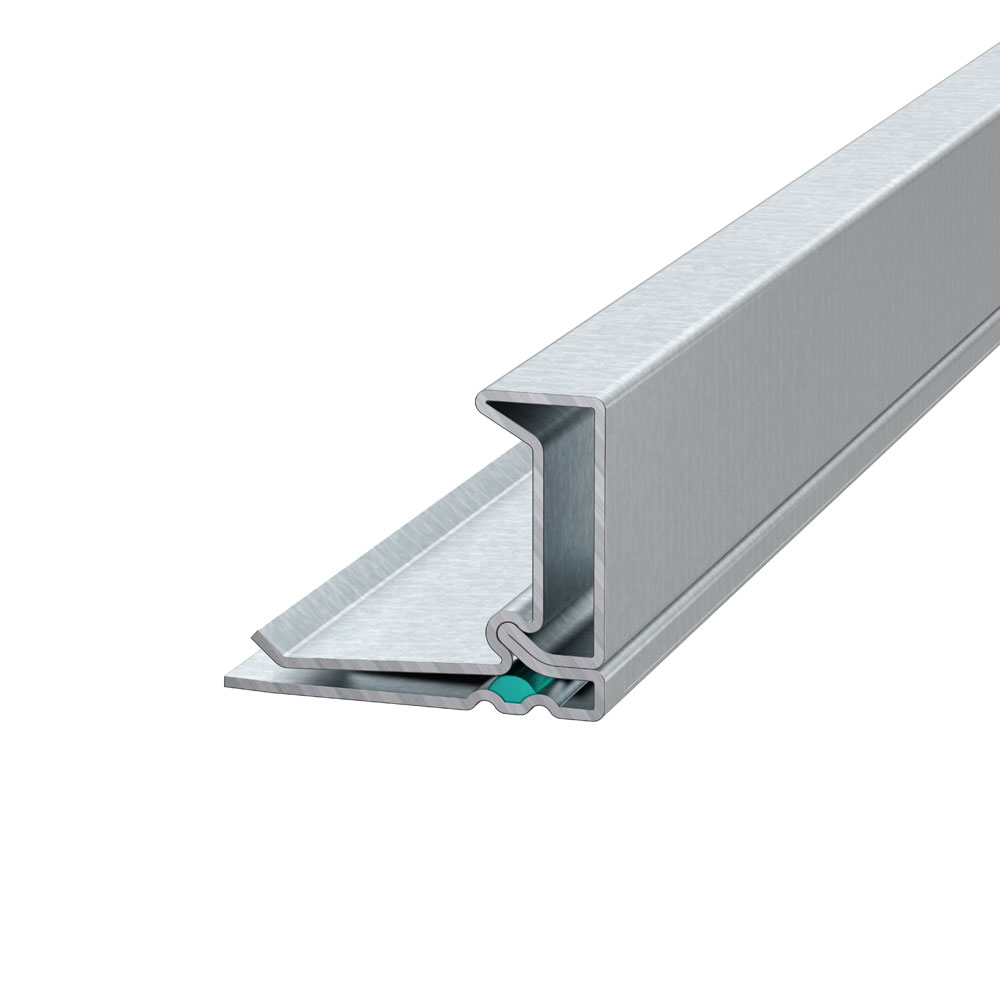

Premium 20 D - 0,7 mm - BUTYL

Art. Nr.: 301050410
  • High torsion rigidity through clinching
  • Flange and corner build an extrem rigid unit
  • Tested to DW/144 - J2
    • Flange
    Length
    Material
    Material thickness
    Sealing compound

    €380.00 * / 100 Metres

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    Gebhardt-Stahl Premium-Flange 20 D – the result of consistent further development of our existing flange systems. We have created a unique slip-on flange system with a clinched joint and a double-beat.

    The Premium flanges with injected Butyl-sealant fulfil the highest requirements with regard to tightness and easily achieve sealing class D in accordance with DIN EN 1507 (TÜV-Nord certified).

    In addition, our Premium-Flange have another special feature: the torsional rigidity of these flanges is 20 times higher, compared with our conventional slip-on flange. Also, as a result of the clinched joint, an extremely rigid corner chamber is formed, thus the flanges and corners form a rigid unit after being plugged together. The handling and assembly characteristics of the flange frames are positively influenced by the increased stiffness.

    The injected Butyl-sealant of our Premium-Flange 20 D meets the requirements of DIN EN ISO 846, is solvent-free, silicone-free and permanently elastic.
    Material: Galvanized
    Approvals: ISO 846
    Material thickness: 0.7 mm
    Flange: 20
    Flange system: Premium-Flange
    Tested to: DW/144 - J2
    Length: 2500 mm
    Sealing compound: Butyl
    Integrated sealant: Yes
    Suitable for powder coating: Yes

    Frequently asked questions

    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the profile suitable?
    Our Premium flange with injected butyl sealing compound is suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.
    Is the flange applicable in accordance with ISO 846?
    Yes, the sealant fulfils the requirements according to ISO 846 - A, C. The sealing compound is classified as very well disinfectable and fulfils the hygienic requirements for use in RLT systems according to VDI 6022, Sheet 1, Section 3.5.
    Is the injected butyl sealant suitable for powder coating?
    Yes, the Gebhardt-Butyl sealant injected into our "Premium" flange is suitable for powder coating.
    For which air tightness class according to DW 144 is the flange suitable?
    TÜV-Nord has confirmed that our premium flange with injected butyl sealing compound meets the requirements of tightness class D according to DW 144 (Specification for Sheet Metal Ductwork/1998).

    CrossSelling

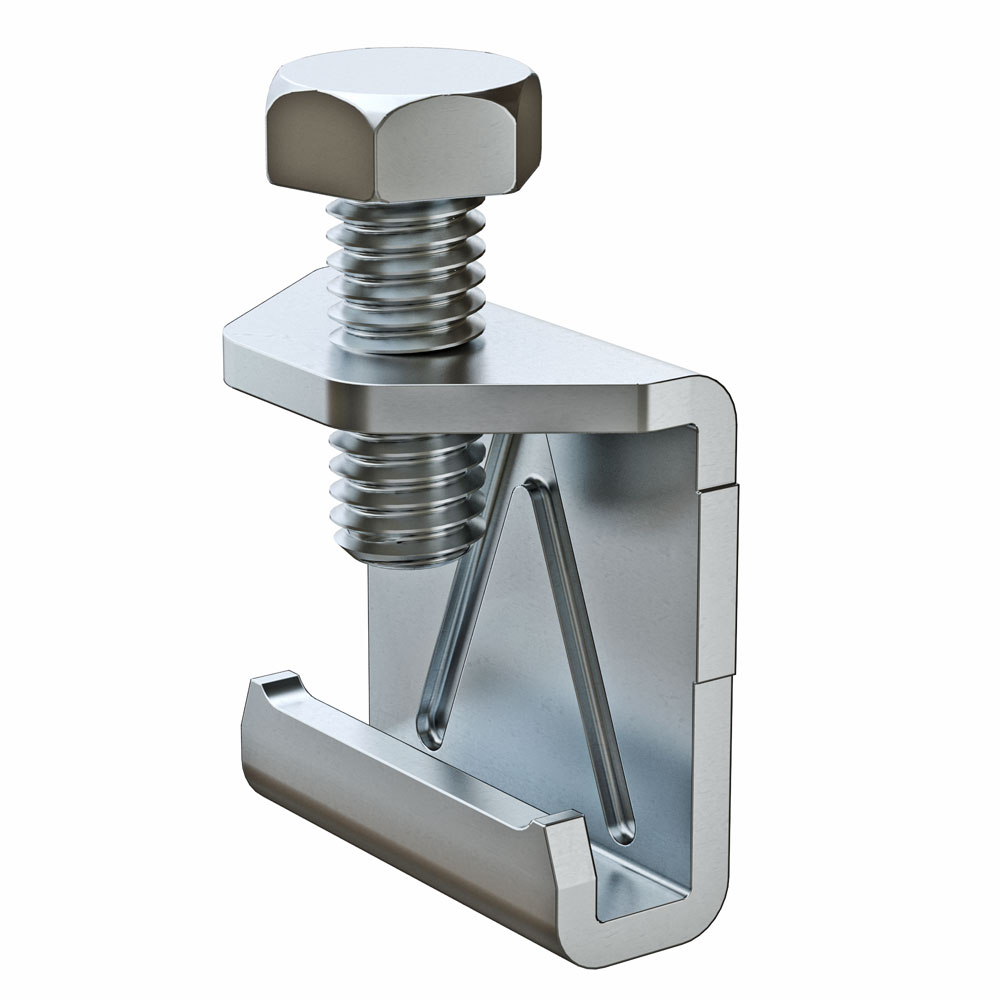

    G-clamp PLUS - galvanized
    G-clamp PLUS - galvanized Art. No: 303021012

    Content: 100 Pieces (€44.90 / 100 Piece)

    €44.90 *
    Gebhardt-MAXX - 290 ml
    Gebhardt-MAXX - 290 ml Art. No: 311050000
    Cartridge 290 ml

    Content: 1 Piece (€13.80 / 1 Piece)

    €13.80 *

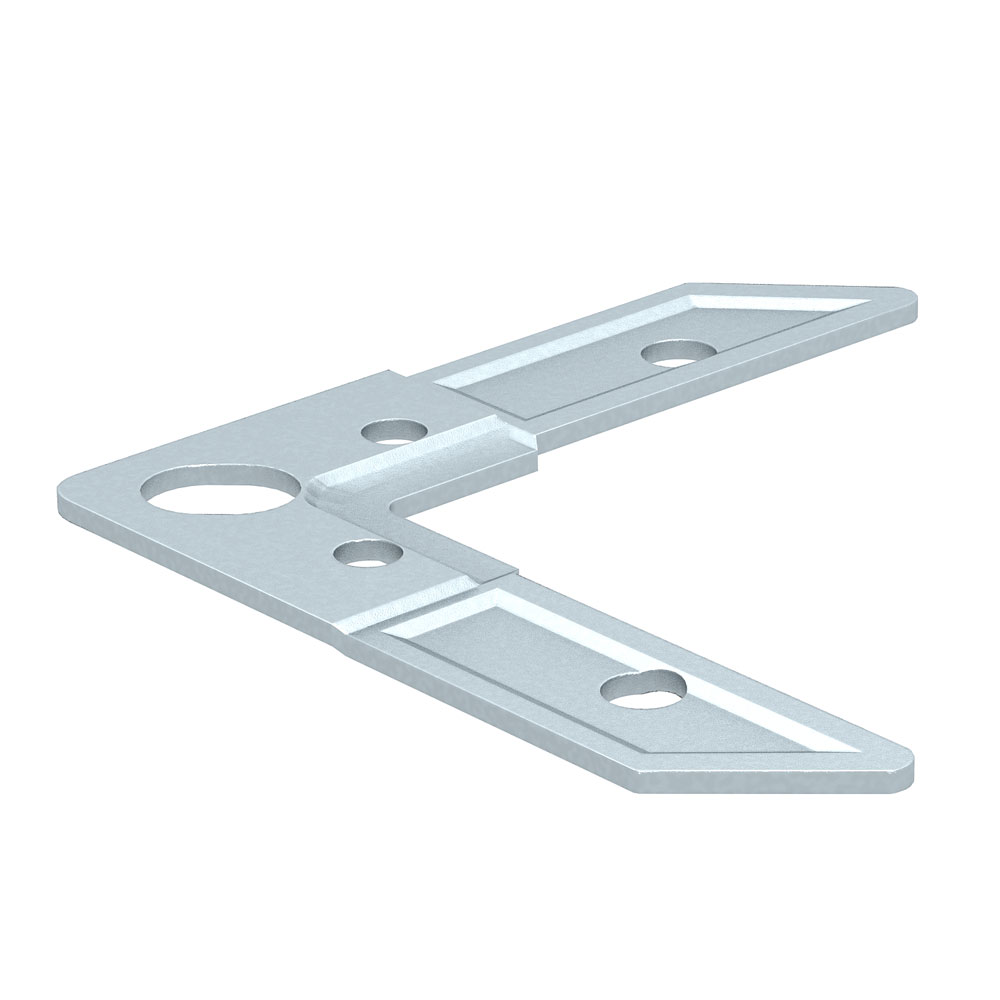

    SL 20/3
    SL 20/3 Art. No: 302010016

    Content: 100 Pieces (€50.00 / 100 Piece)

    €50.00 *

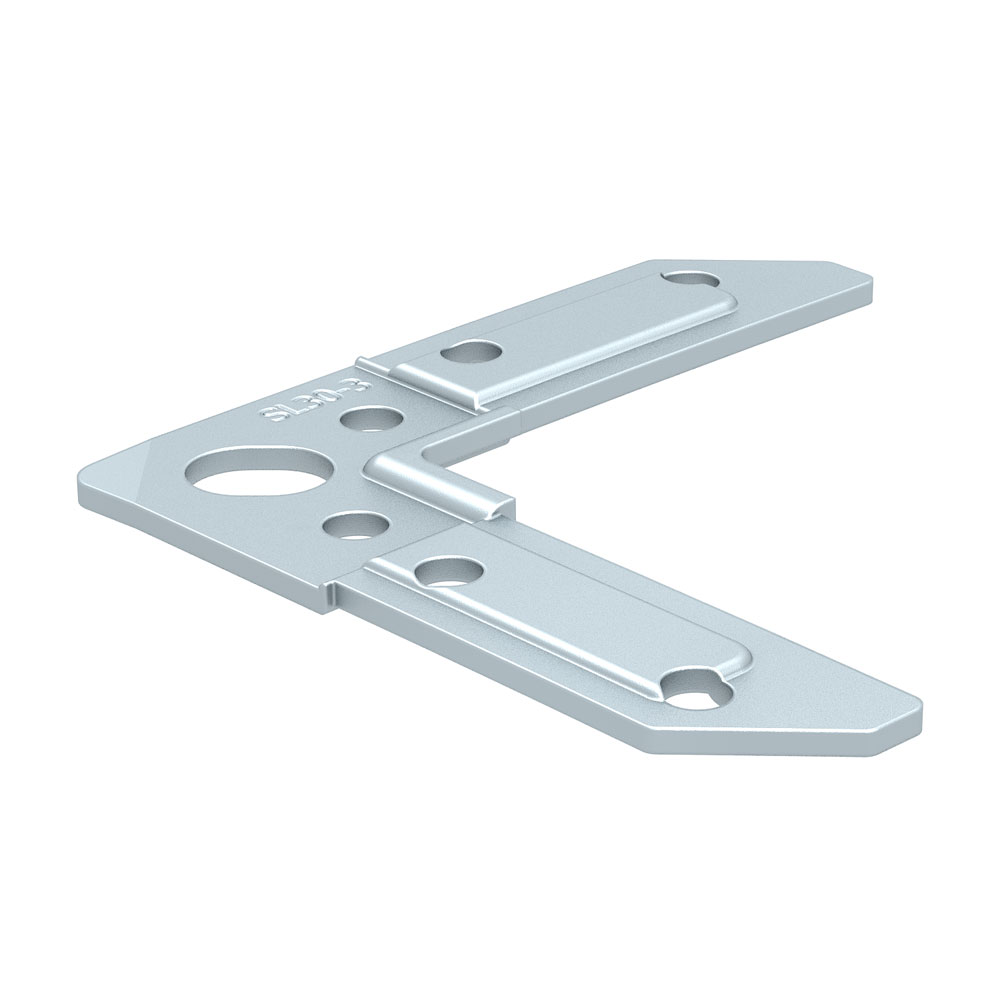

    SL 30/3
