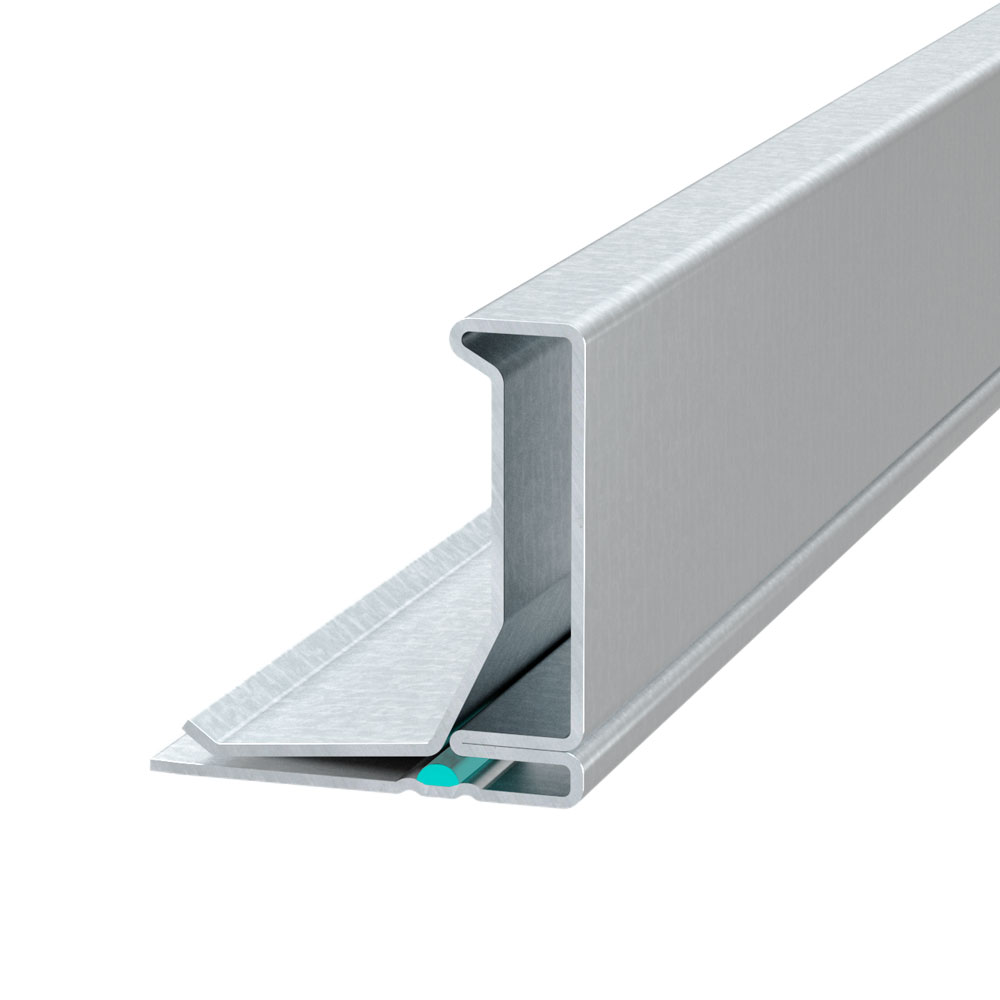

S 30 C - 0,75 mm - BUTYL

Art. Nr.: 301020530
  • Flanges with integral Butyl-sealant suitable for air-tightness class C
  • Butyl-sealant tested to DIN EN ISO 846
  • Butyl-sealant suitable for powder coating
    • Flange
    Length
    Material
    Material thickness
    Sealing compound

    €650.00 * / 100 Metres

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    As an alternative to the flange profiles of the "P" series, our profiles of the "S" series are to be considered. The multi-chamber construction used here ensures very good stability and easy assembly. Like the other flanges of the "S" series, the S 30 C has the same sliding strip nose, regardless of whether it is 20, 30 or 40 mm. This means that only one type of sliding strip or duct clip is required, regardless of the profile size used.
    The S 30 C flange has a pocket into which a butyl sealant is injected during production. This means that the flange is ideally suited for increased air tightness requirements.
    Made of galvanised steel, the flange has a length of 5,000 mm and is supplied in bundles of 500 m each.
    Material: Galvanized
    Approvals: ISO 846
    Material thickness: 0.75 mm
    Flange: 30
    Flange system: S-Flange
    Length: 5000 mm
    Sealing compound: Butyl
    Integrated sealant: Yes
    Suitable for powder coating: Yes
    Mounting_recommenadtion_EN_2.pdf (1,786.32KB)

    CrossSelling

    SL 20/3
    SL 20/3 Art. No: 302010016

    Content: 100 Pieces (€50.00 / 100 Piece)

    €50.00 *
    SL 30/3
    SL 30/3 Art. No: 302070010

    Content: 100 Pieces (€70.00 / 100 Piece)

    €70.00 *

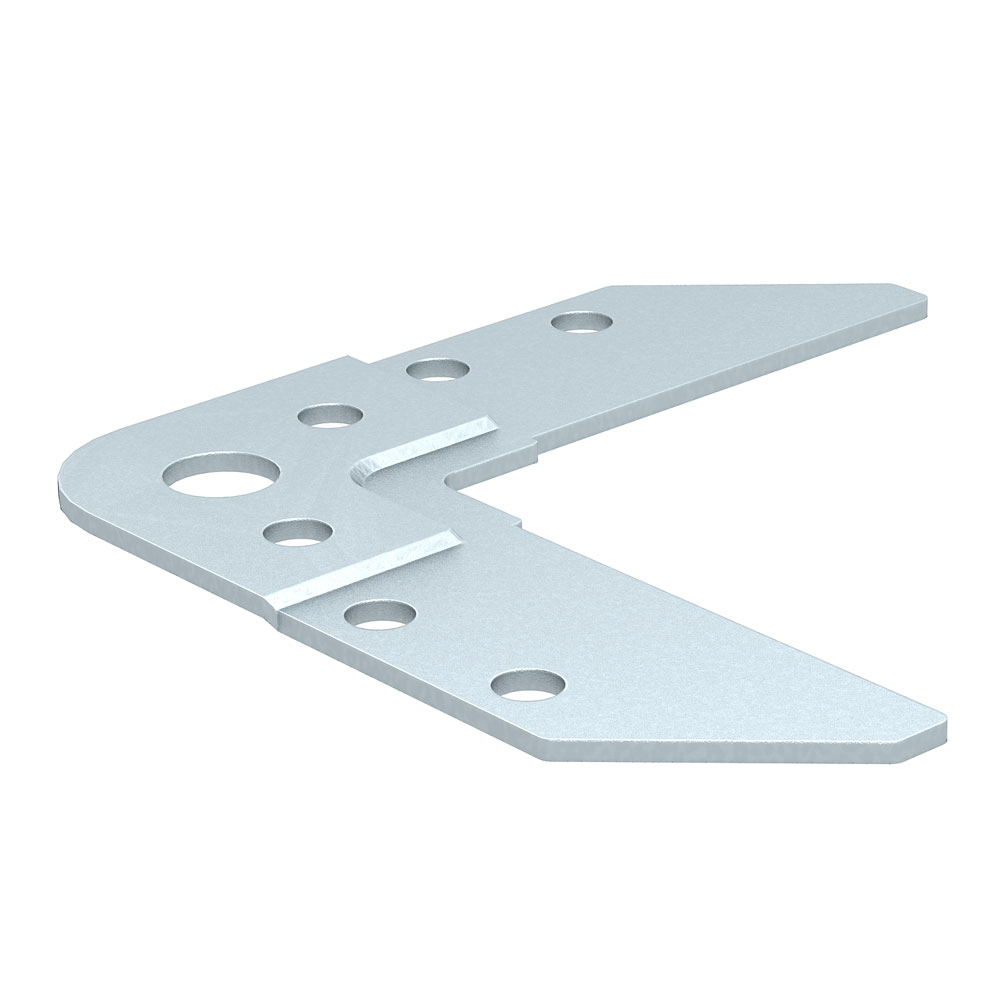

    P 40/4
