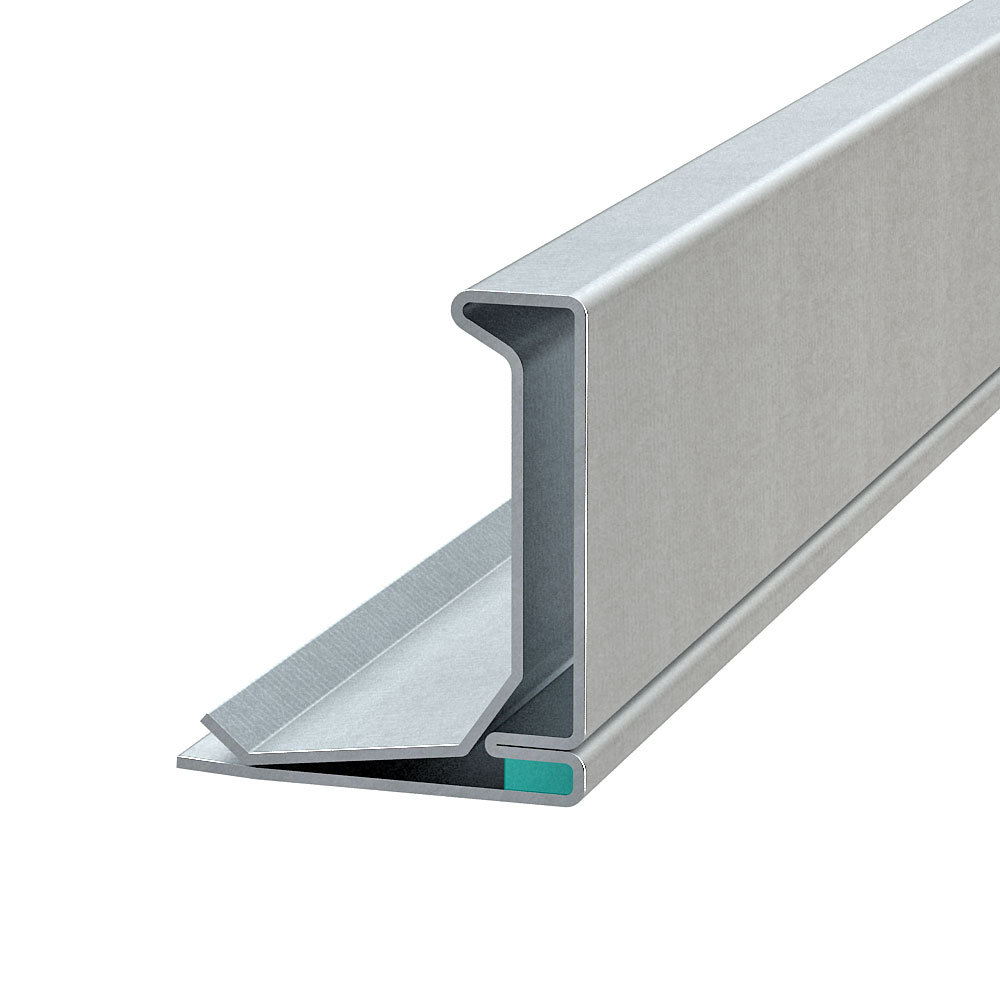

S 30 - 0,8 mm - GEL

Art. Nr.: 301020510
  • Sealant tested to DIN EN ISO 846
  • Multi-chamber construction of our S air duct profile ensures very good stability
  • Our ''S'' flanges 20, 30 and 40 all have the same sliding strip nose
    • Flange
    Length
    Material
    Material thickness
    Sealing compound

    €645.00 * / 100 Metres

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The "S" series is the alternative to the slip-on flange of the "P" series. The gel injected into the pockets makes it easy to meet increased tightness requirements and the multi-chamber construction of our S 30 air duct profile ensures very good stability and easy installation. Our "S" flanges 20, 30 and 40 all have the same sliding strip nose. So you only need one type of sliding strip or duct clip, regardless of the profile sizes used. Made of galvanised steel, the flange has a length of 5,000 mm and is supplied in bundles of 500 m each.
    Material: Galvanized
    Approvals: ISO 846
    Material thickness: 0.8 mm
    Flange: 30
    Flange system: S-Flange
    Length: 5000 mm
    Sealing compound: Gel
    Integrated sealant: Yes

    Frequently asked questions

    Is the flange applicable in accordance with ISO 846?
    Yes, the sealant fulfils the requirements according to ISO 846 - A, C. The sealing compound is classified as very well disinfectable and fulfils the hygienic requirements for use in RLT systems according to VDI 6022, Sheet 1, Section 3.5.
    Is the injected gel sealant suitable for powder coating?
    No, unlike our butyl sealant which is injected in our Premium and P flanges, the gel sealant injected in our S flanges is not suitable for powder coating.
    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the profile suitable?
    Our S flange with injected gel sealing compound is suitable for tightness class C according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 3 according to DIN EN 16798:3.

    CrossSelling

    SL 20/3
    SL 20/3 Art. No: 302010016

    Content: 100 Pieces (€50.00 / 100 Piece)

    €50.00 *
    SL 30/3
    SL 30/3 Art. No: 302070010

    Content: 100 Pieces (€70.00 / 100 Piece)

    €70.00 *

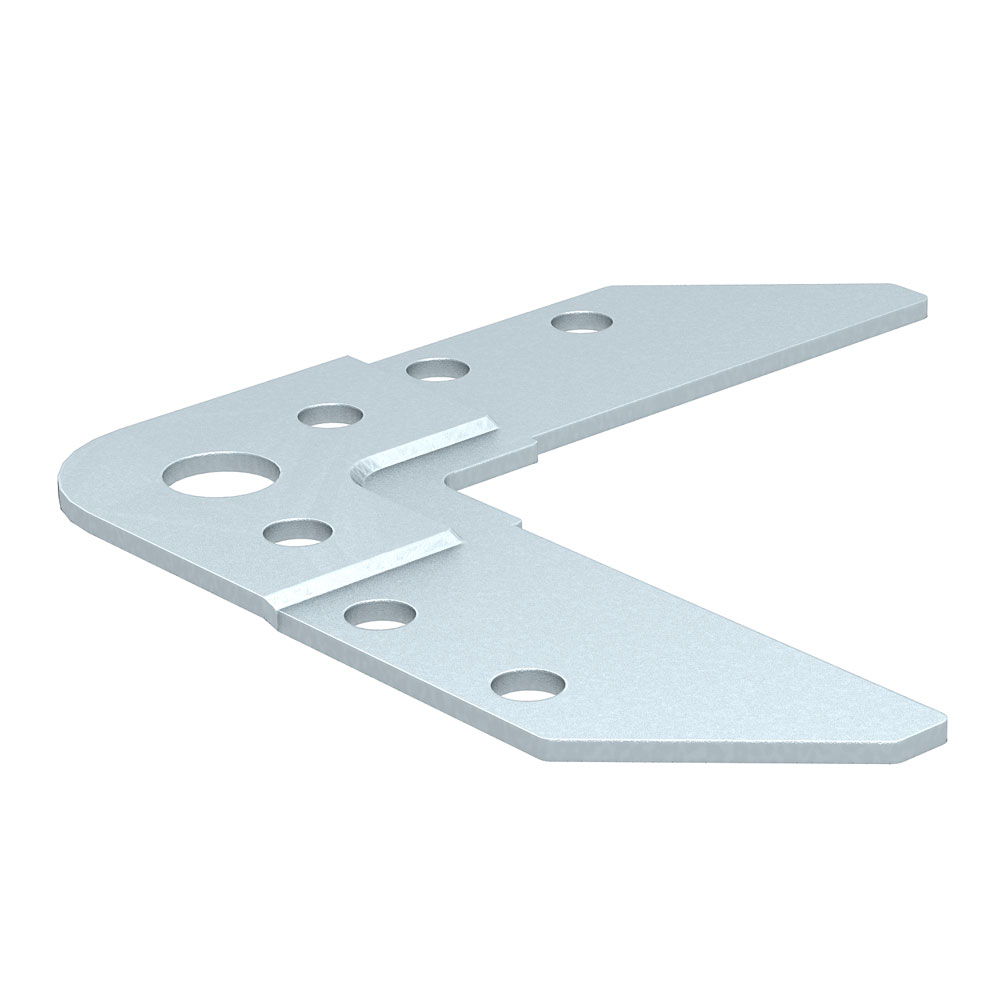

    P 40/4
    P 40/4 Art. No: 302080010

    Content: 100 Pieces (€250.00 / 100 Piece)

    €250.00 *

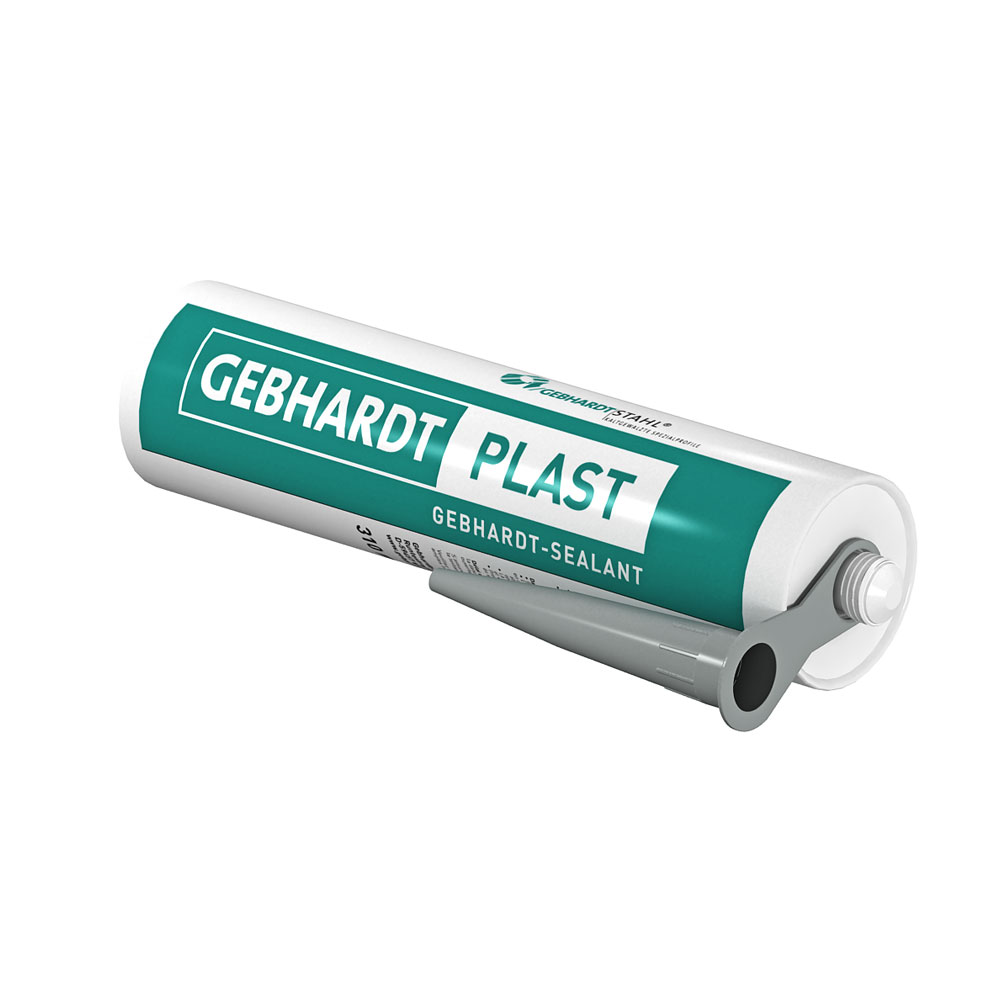

    Gebhardt-PLAST - 310 ml
