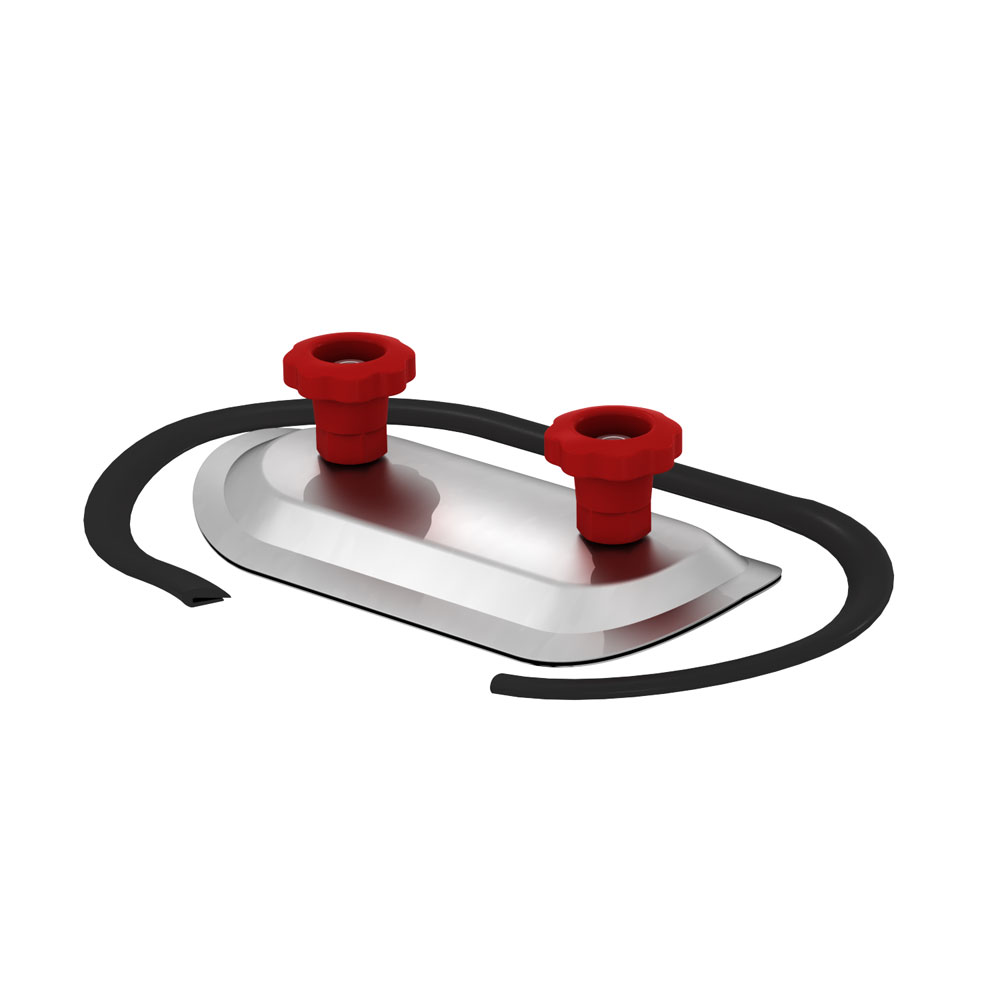

Curved access panel GRD 18K-10

Art. Nr.: 308500010
  • For round and oval tubes
  • Self-adhesive edge protection included
  • Fixed by two star-shaped hand knobs (red)
    • Dimension
    Material
    Opening

    €7.30 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The access door GRD 18K-10 has a dimension of 180 x 80 mm and is suitable for spiral seam tubes with Ø 100 mm. The GRD inspection cover is a double-shell, pressed inspection cover made of galvanised sheet steel for closing maintenance (inspection) or cleaning openings in circular or oval air ducts.

    The self-adhesive edge protector serves as a seal as well as protection against cuts and is included with the access panel. The stable design with flow-optimised inner cover prevents air turbulence. The access panel type GRD 18K-10 is screwed on by means of two polyamide rotary handles.
    Material: Galvanized
    Dimension: 180 x 80 mm
    Scope of application: Spiral ducts
    Opening: 100 mm
    Gasket: Polyethylene foam seal
    Edge protection: Yes
    308480010_Access_doors_for_spiral_tubes_with_edge_protection_en.pdf (353.87KB)
    Montagehinweise_Revisionsdeckel_5.pdf (665.06KB)

    CrossSelling

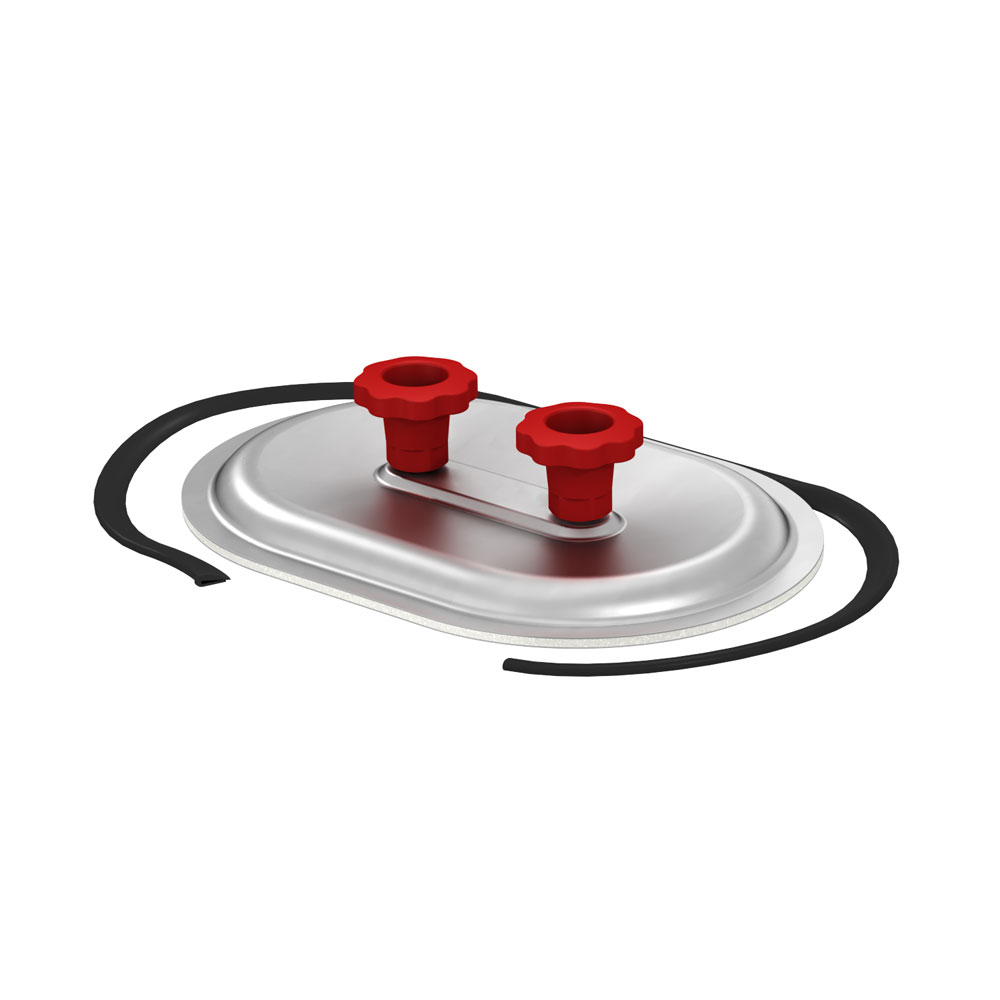

    Access Door ID K 43
    Access Door ID K 43 Art. No: 308030010
    Galvanized 400 x 300 mm

    Content: 1 Piece (€24.10 / 1 Piece)

    Variants from €7.50
    €24.10 *

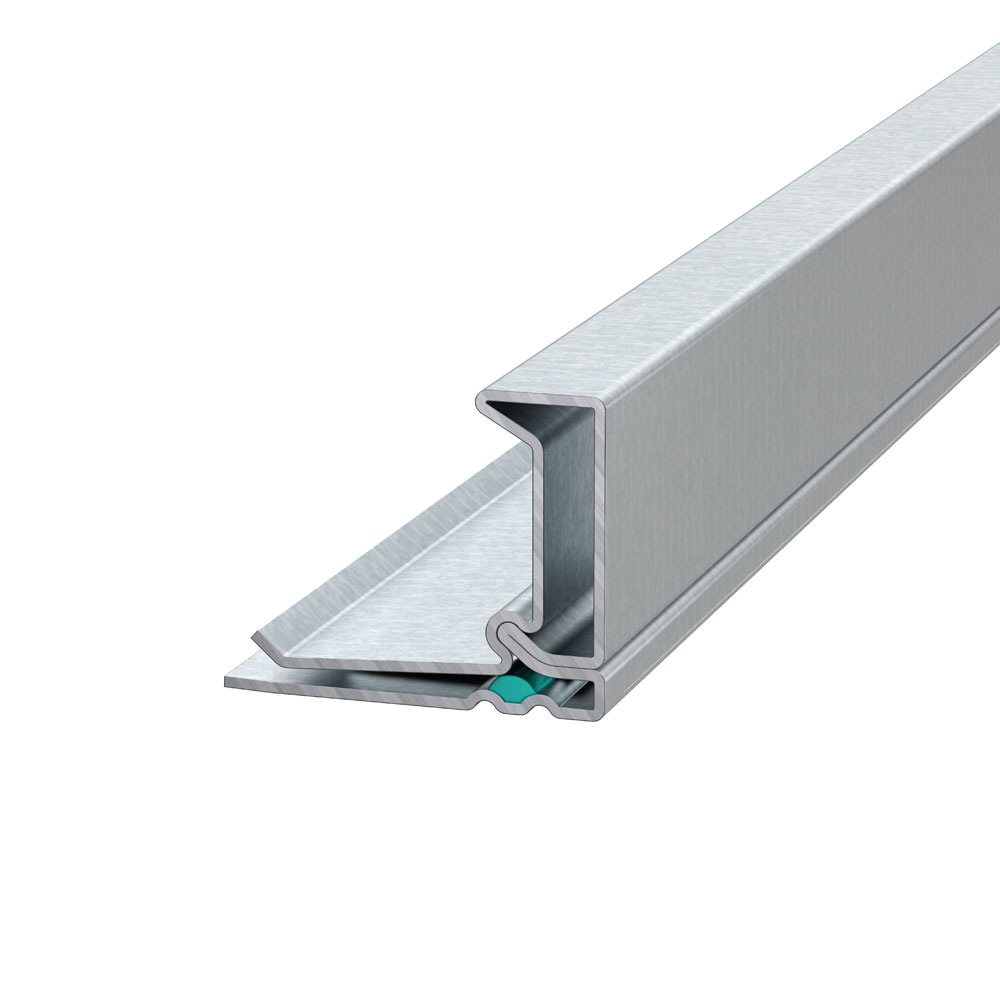

    Premium 20 D - 0,7 mm - BUTYL
    Premium 20 D - 0,7 mm - BUTYL Art. No: 301050402
    Galvanized 0.7 mm 20 5000 mm Butyl

    Content: 100 Metres (€370.00 / 100 Metre)

    Variants from €360.00
    €370.00 *

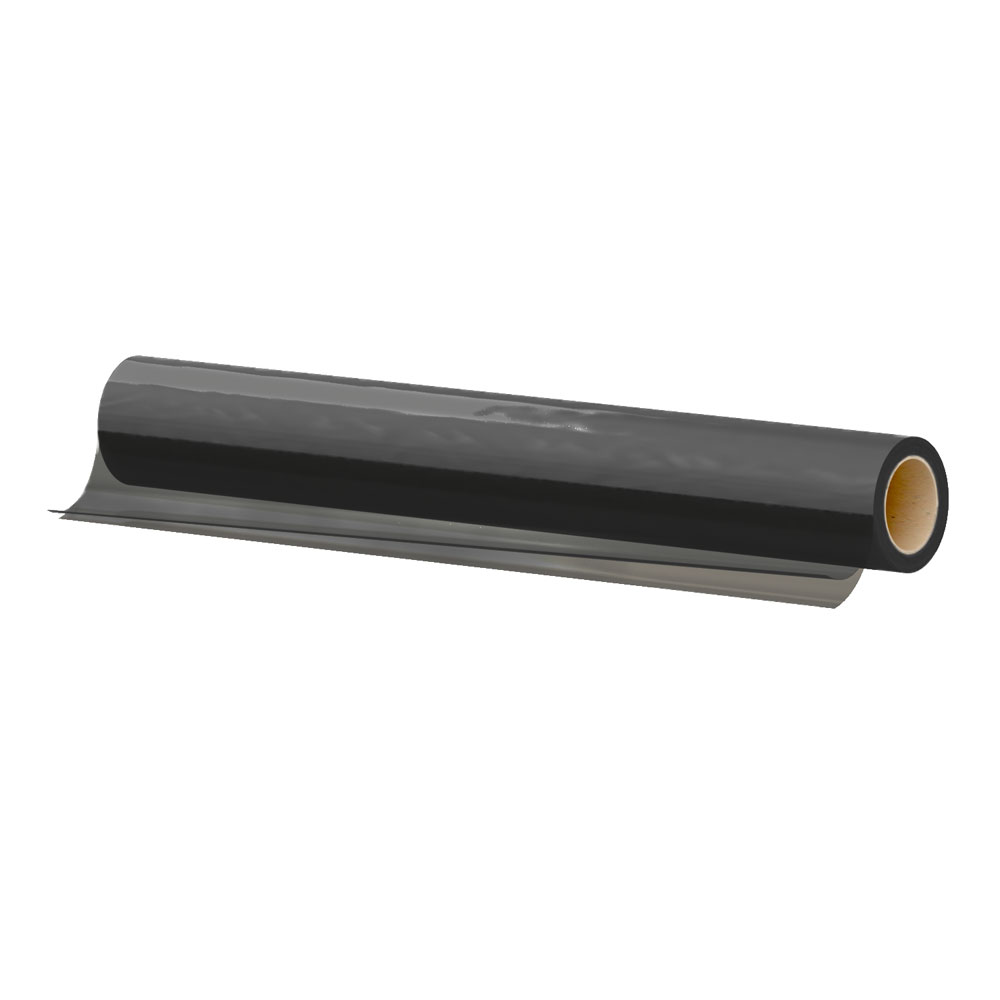

    Protective duct cover 1000 mm, 50 mµ - RECYCLED
    Protective duct cover 1000 mm, 50 mµ - RECYCLED Art. No: 312040100
    1000 mm Grey

    Content: 1 Piece (€115.00 / 1 Piece)

    Variants from €58.00
    €115.00 *

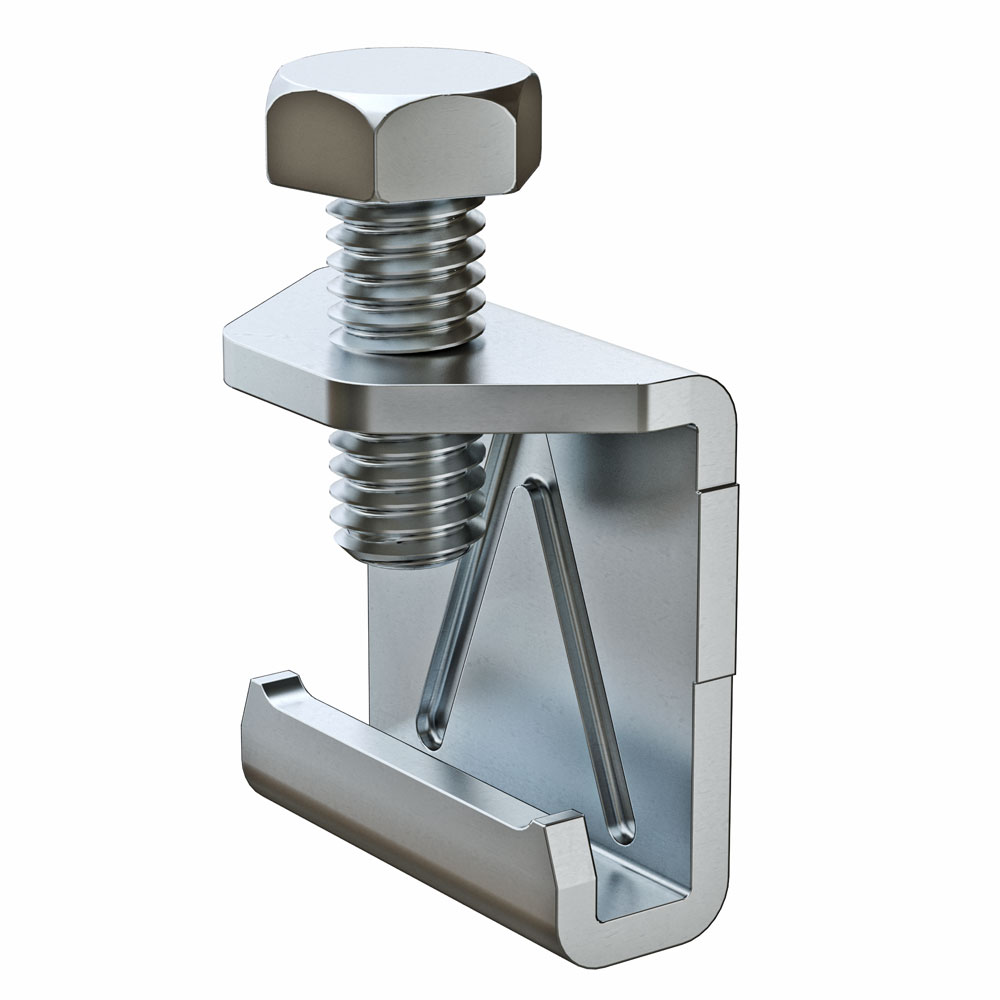

    G-clamp PLUS - galvanized
