Access Door ID K 43

Art. Nr.: 308030010
  • With self-adhesive edge protection
  • For rectangular and oval ducts
  • Suitable for air-tightness class D (TÜV-Nord certified) or ATC 2
    • Dimension
    Material

    €24.10 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The access panel ID 43 K is a double-shell, pressed inspection cover made of galvanised steel for closing maintenance (inspection) or cleaning openings in rectangular or oval air ducts. The dimension of the ID 43 K is 400 x 300 mm and the stable design with flow-optimised inner cover leads to the avoidance of air turbulences.

    The access door ID 43 K has a self-adhesive edge protector, which protects against injuries during assembly and installation, and is also suitable for use in air duct systems of tightness class C or tightness class D according to DIN EN 1507 due to the polyethylene foam seal (PE) glued to the inner cover.
    Material: Galvanized
    Dimension: 400 x 300 mm
    Scope of application: Rectangular air ducts
    Gasket: Polyethylene foam seal
    Edge protection: Yes
    308000010_Access_doors-with_edge_protection_en_1.pdf (345.80KB)
    Assembly_advice_access_doors_1.pdf (655.98KB)

    Frequently asked questions

    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the access door suitable?
    Our access doors ID K with self-adhesive edge protection are suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.

    CrossSelling

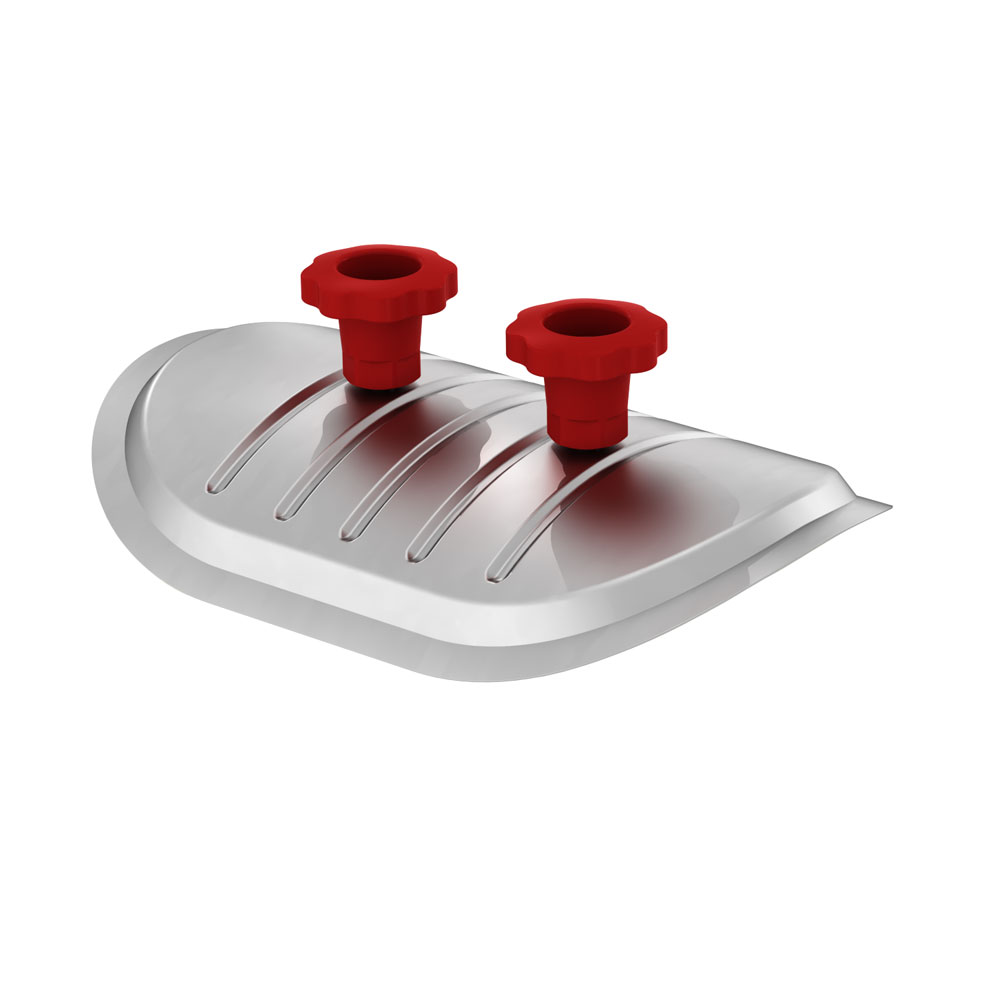

    Curved access panel GRD 32-35
