Access Door ID 32 - AISI 316

Art. Nr.: 308110340
  • Suitable for air-tightness class D (TÜV-Nord certified)
  • Fixed by two star-shaped hand knobs (red)
  • Self-adhesive drilling plate in each bag
    • Dimension
    Material

    €63.10 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

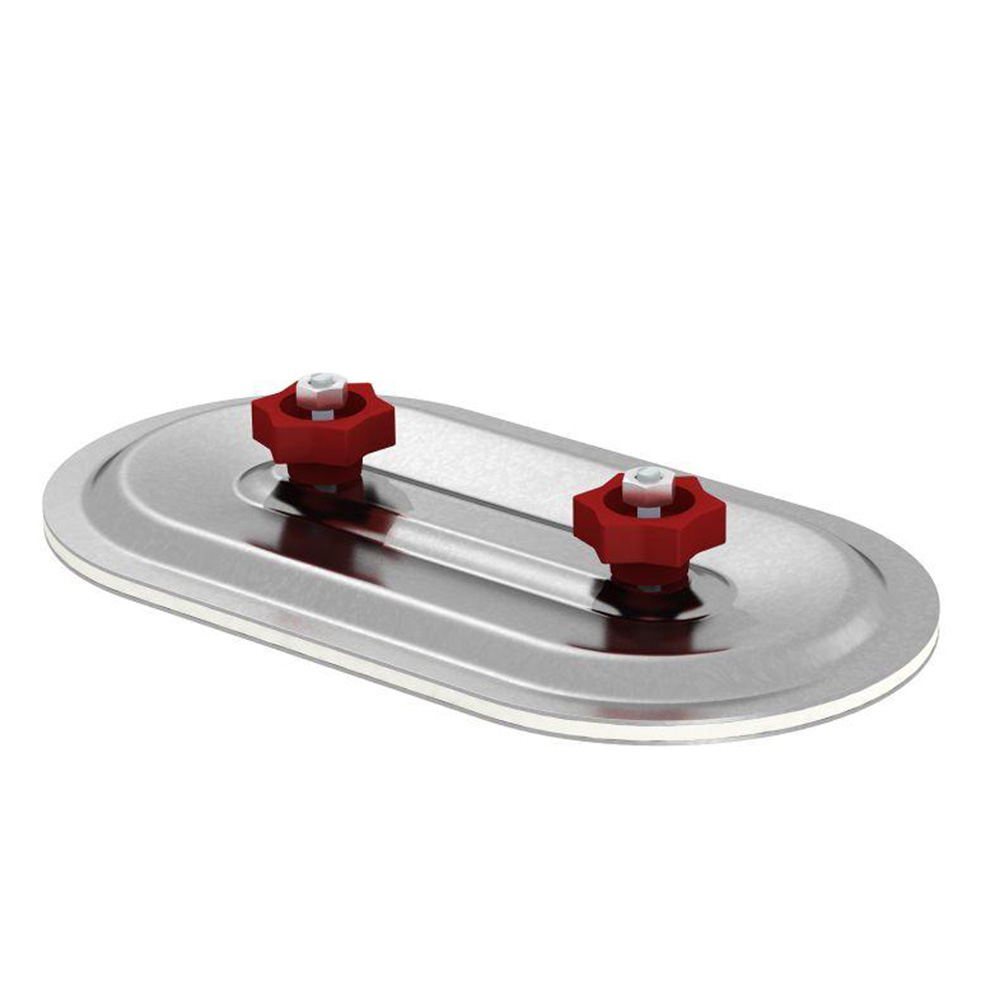

    The access panel ID 32 is a double-shell, pressed inspection cover made of stainless steel (AISI 316 L) for closing maintenance (inspection) or cleaning openings in rectangular or oval air ducts. The dimension of the ID 32 is 300 x 200 mm and the stable design with flow-optimised inner cover leads to the avoidance of air turbulences.

    The access door ID 32 is also suitable for use in air duct systems of tightness class C or tightness class D according to DIN EN 1507 due to the polyethylene foam seal (PE) glued to the inner cover.
    Material: AISI 316 L
    Dimension: 300 x 200 mm
    Scope of application: Rectangular air ducts
    Gasket: Polyethylene foam seal
    308000010_Access_doors_en_2.pdf (343.63KB)
    308100040_Access_doors_AISI_304_en_1.pdf (321.30KB)
    308100340_Access_doors_AISI_316_en_1.pdf (321.26KB)
    Assembly_advice_access_doors.pdf (655.98KB)

    Frequently asked questions

    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the access door suitable?
    Our access doors ID are suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.
