Access Door ID 32 - AISI 304

Art. Nr.: 308110040
  • Suitable for air-tightness class D (TÜV-Nord certified)
  • Fixed by two star-shaped hand knobs (red)
  • Self-adhesive drilling plate in each bag
    • Dimension
    Material

    €47.90 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

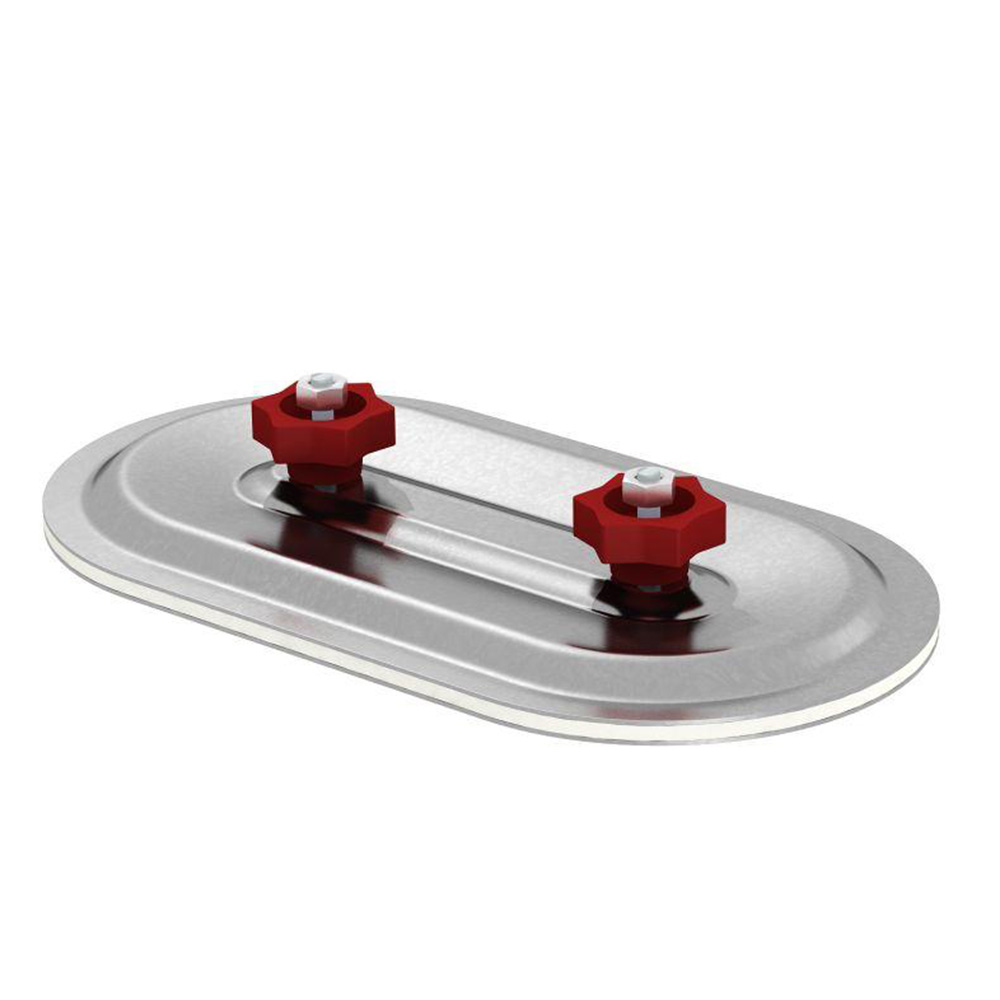

    The access panel ID 32 is a double-shell, pressed inspection cover made of stainless steel for closing maintenance (inspection) or cleaning openings in rectangular or oval air ducts. The dimension of the ID 32 is 300 x 200 mm and the stable design with flow-optimised inner cover leads to the avoidance of air turbulences.

    The access door ID 32 is also suitable for use in air duct systems of tightness class C or tightness class D according to DIN EN 1507 due to the polyethylene foam seal (PE) glued to the inner cover.
    Material: AISI 304
    Dimension: 300 x 200 mm
    Scope of application: Rectangular air ducts
    Gasket: Polyethylene foam seal
    308000010_Access_doors_en_2.pdf (343.63KB)
    308100040_Access_doors_AISI_304_en_1.pdf (321.30KB)
    308100340_Access_doors_AISI_316_en_1.pdf (321.26KB)
    Assembly_advice_access_doors.pdf (655.98KB)

    Frequently asked questions

    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the access door suitable?
    Our access doors ID are suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.
