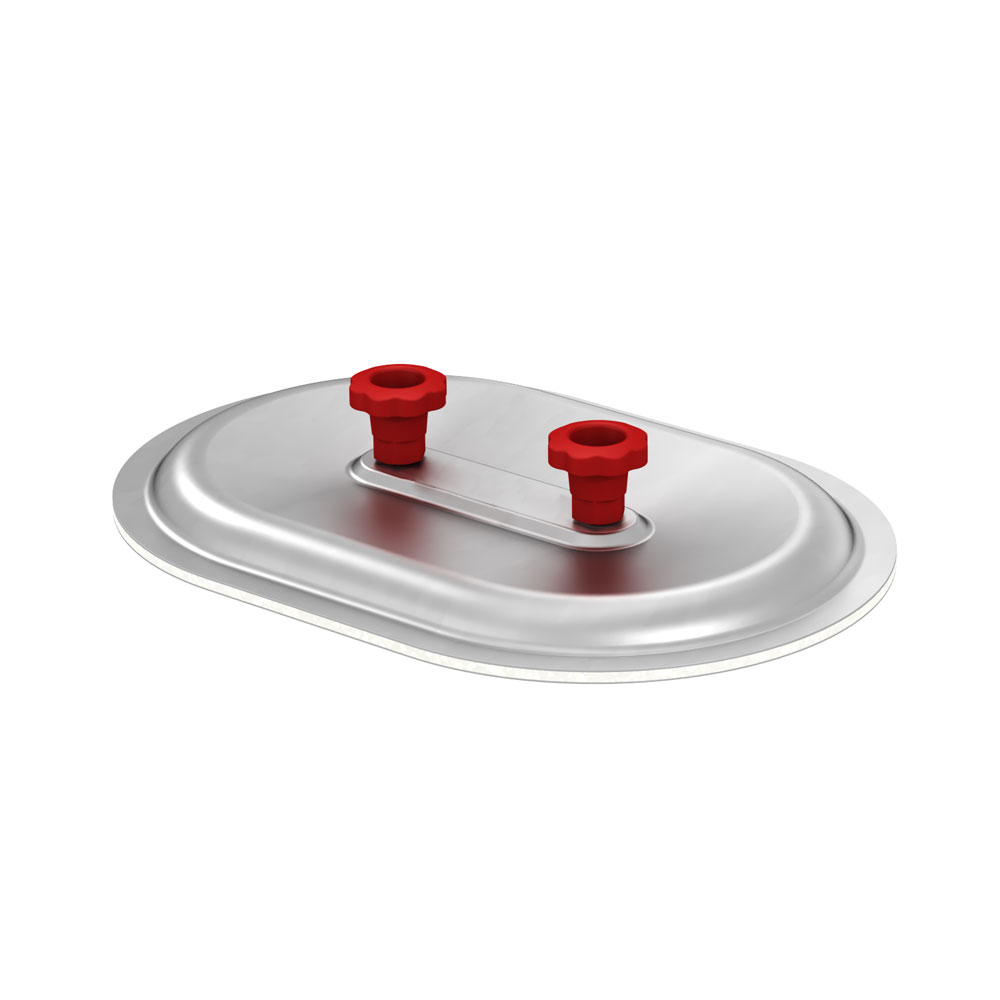

Access Door ID 31

Art. Nr.: 308110010
  • Suitable for air-tightness class D (TÜV-Nord certified)
  • Fixed by two star-shaped hand knobs (red)
  • Self-adhesive drilling plate in each bag
    • Dimension
    Material

    €11.40 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    Access doors ID 31 with dimensions of 300 x 150 mm, for rectangular ductwork pressed from galvanised steel in a sturdy double-shell design with a flow-optimised inner shell to prevent turbulences.Two star-shaped hand knobs with embedded metal threat allow to fix the access panels to the duct.

    A polyethylene foam gasket securely seals the access panels, so they are suitable for sealing class D (TÜV-Nord certified).
    Material: Galvanized
    Dimension: 300 x 150 mm
    Scope of application: Rectangular air ducts
    Gasket: Polyethylene foam seal
    308000010_Access_doors_en_2.pdf (343.63KB)
    308100040_Access_doors_AISI_304_en_1.pdf (321.30KB)
    308100340_Access_doors_AISI_316_en_1.pdf (321.26KB)
    Assembly_advice_access_doors.pdf (655.98KB)

    Frequently asked questions

    For which air tightness class according to EN 1507:2006 / EN 16798:3 is the access door suitable?
    Our access doors ID are suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.

    CrossSelling

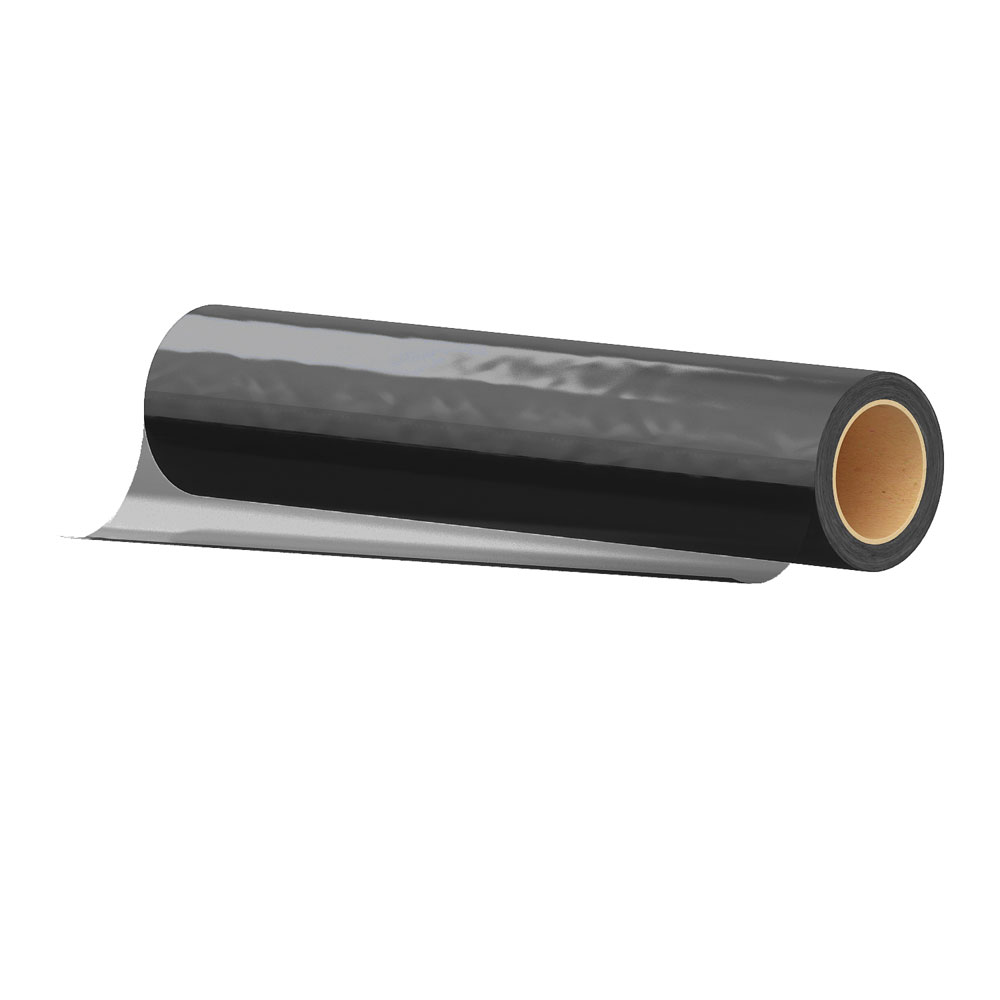

    Protective duct cover 500 mm, 50 mµ - RECYCLED
    Protective duct cover 500 mm, 50 mµ - RECYCLED Art. No: 312040050
    500 mm Grey

    Content: 1 Piece (€58.00 / 1 Piece)

    €58.00 *
    P 30S C - 0,8 mm - BUTYL
    P 30S C - 0,8 mm - BUTYL Art. No: 301050415
    Galvanized 0.8 mm 30 5000 mm Butyl

    Content: 100 Metres (€680.00 / 100 Metre)

    Variants from €300.00
    €680.00 *

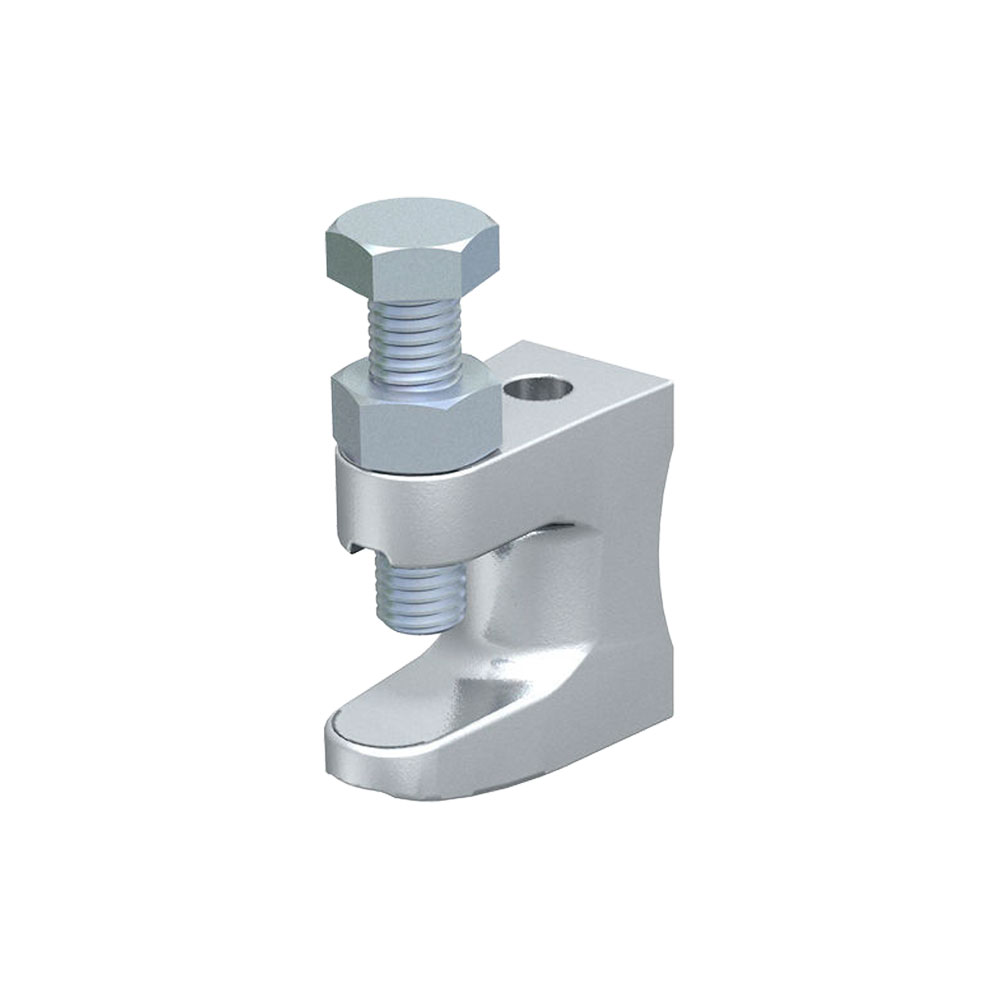

    Beam clamp 9 mm
    Beam clamp 9 mm Art. No: 313150009
    9 mm

    Content: 100 Pieces (€245.00 / 100 Piece)

    €245.00 *

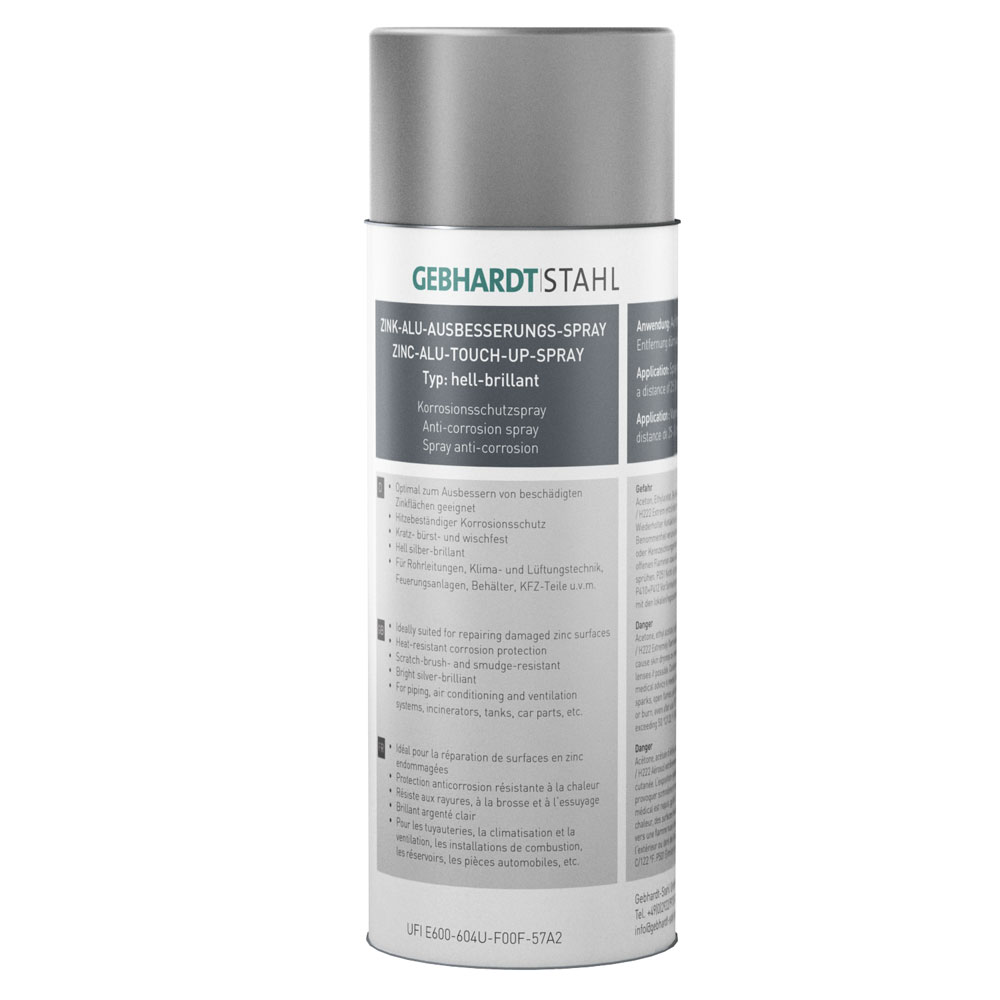

    Zinc-Alu repair spray 400 ml
    Zinc-Alu repair spray 400 ml Art. No: 309420015

    Content: 1 Piece (€8.50 / 1 Piece)

    €8.50 *
