Access Door ID 21 - AISI 304 | 200 x 100 mm | AISI 304 | 308100040

To be able to use the full range of Shopware 6, we recommend activating Javascript in your browser.

Description

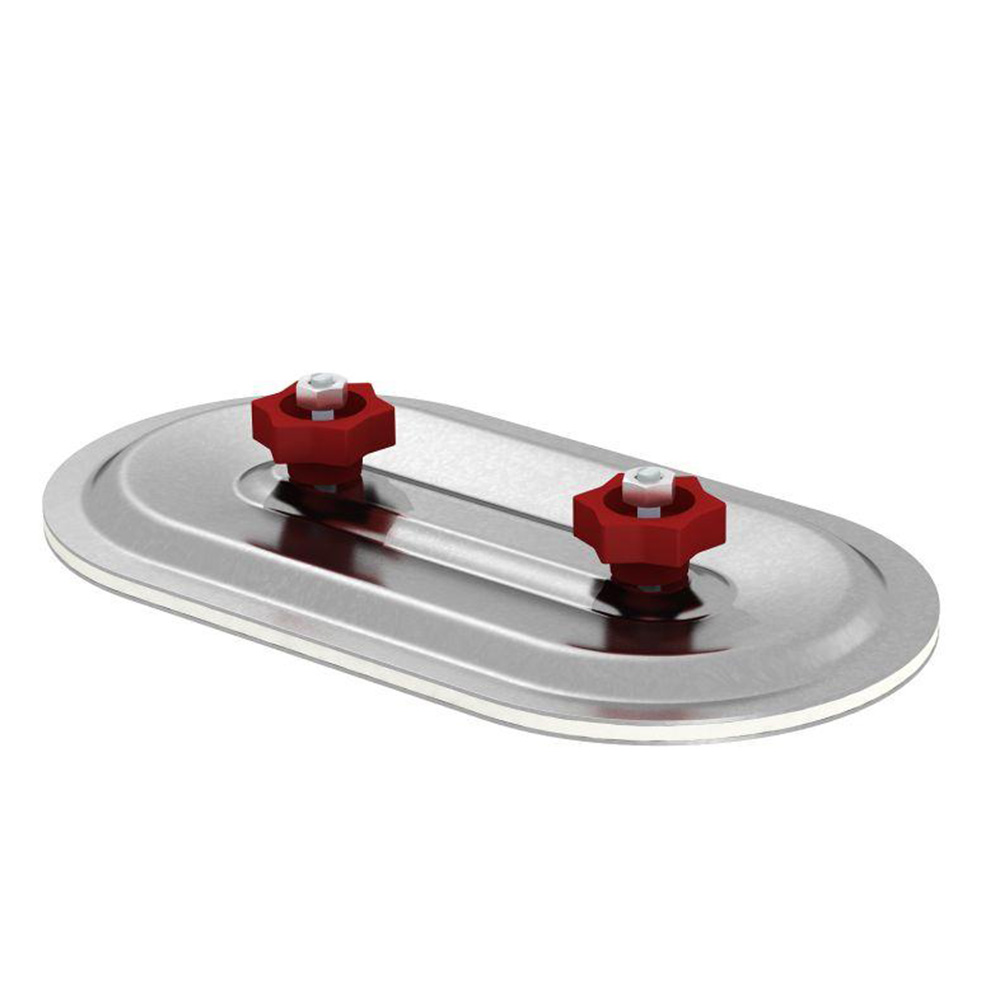

The access panel ID 21 is a double-shell, pressed inspection cover made of stainless steel for closing maintenance (inspection) or cleaning openings in rectangular or oval air ducts. The dimension of the ID 21 is 200 x 100 mm and the stable design with flow-optimised inner cover leads to the avoidance of air turbulences.

The access door ID 21 is also suitable for use in air duct systems of tightness class C or tightness class D according to DIN EN 1507 due to the polyethylene foam seal (PE) glued to the inner cover.

Material:	AISI 304
Dimension:	200 x 100 mm
Scope of application:	Rectangular air ducts
Gasket:	Polyethylene foam seal

Files

308000010_Access_doors_en_2.pdf (343.63KB)

308100040_Access_doors_AISI_304_en_1.pdf (321.30KB)

308100340_Access_doors_AISI_316_en_1.pdf (321.26KB)

Assembly_advice_access_doors.pdf (655.98KB)

For which air tightness class according to EN 1507:2006 / EN 16798:3 is the access door suitable?

Our access doors ID are suitable for tightness class D according to DIN EN 1507:2006 (TÜV-Nord certified) or ATC 2 according to DIN EN 16798:3.
