Fibre glass/PU - 45/60/45

Art. Nr.: 309120040
  • For construction of flexible connectors in HVAC-systems
  • Suitable for air-tightness class C (TÜV-Nord certified*)
  • Fire resistance: M0 and +400°C/2H
    • Effective length
    Sheet metal

    €23.69 * / 1 Metre

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

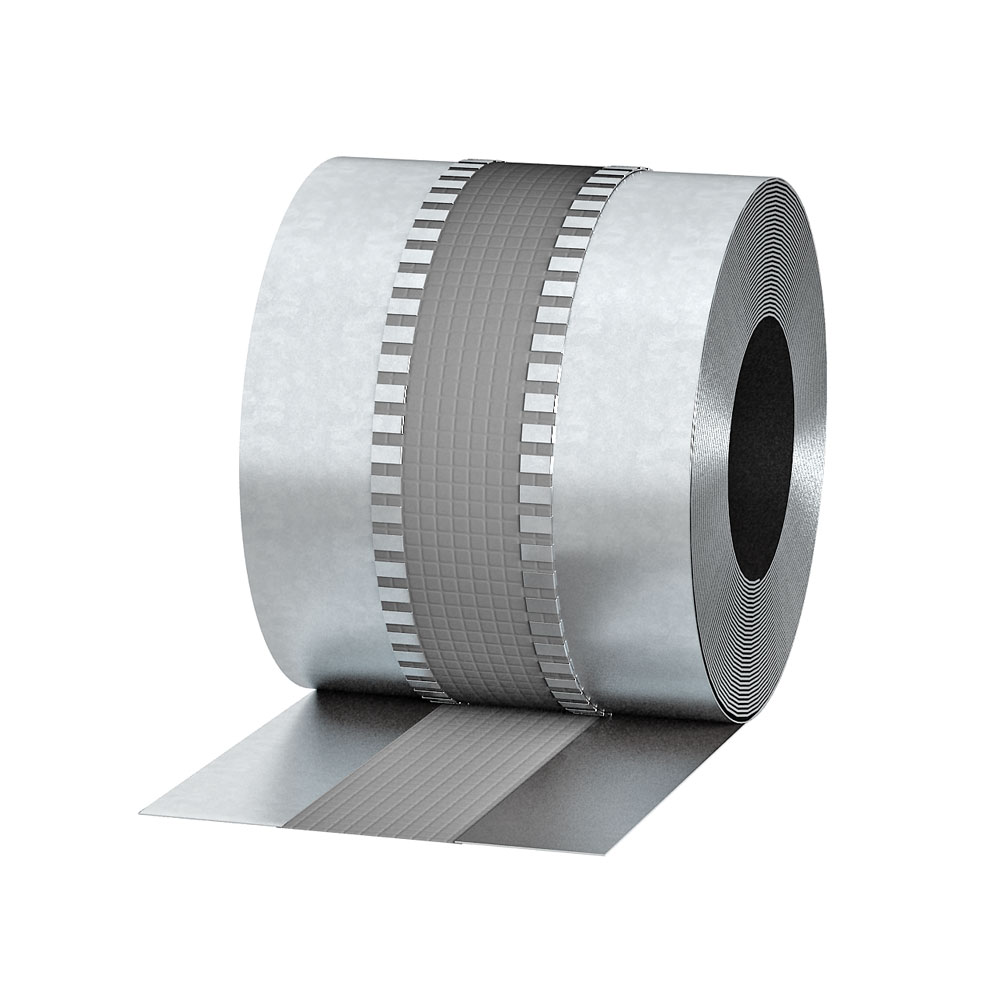

    High-quality flexible connection made of glass fibre/polyurethane for the manufacture of fabric compensators in HVAC systems. By using these flexible connections, vibration transmission in ducts and pipes can be avoided and they also serve as acoustic decoupling.

    The polyurethane-coated glass silk is located between two steel surrounds and the stretched width is 150 mm. The flexible connection made of glass fibre/PU is suitable for tightness class C (TÜV-Nord certified) or ATC 3 and has a temperature resistance of up to +200°C. They also have a fire resistance (M0) and a heat resistance of up to +400°C / 2h.
    Material: Fibreglass/PU
    Effective length: 150 mm
    Sheet metal: AISI 304
    Fire protection class: M0
    Fabric colour: Silver-grey
    Temperature resistance up to: 200 °C
    Temperature resistance from: -50 °C

    Frequently asked questions

    What is the temperature resistance?
    The glass fibre fabric has a heat resistance of up to +500°C. However, the PU coating already evaporates at a temperature of approx. +200°C.

    CrossSelling

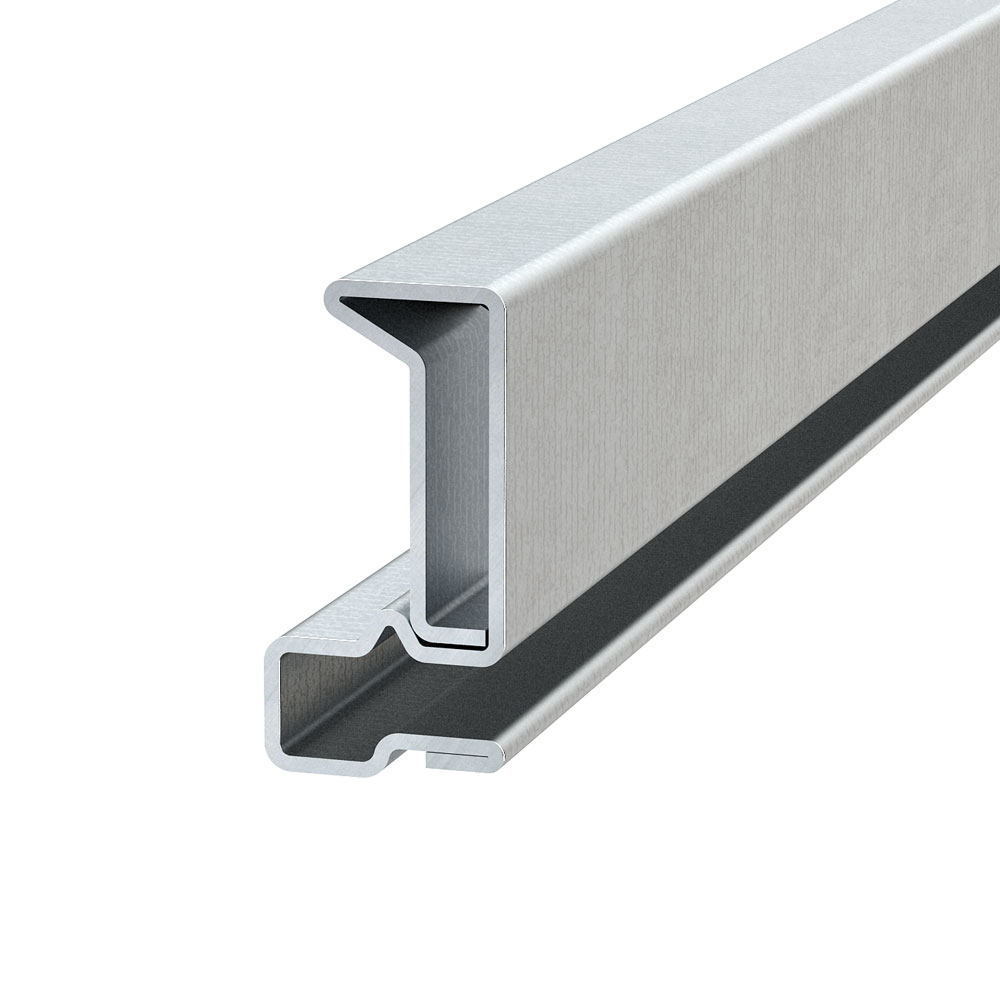

    flex.x-Flange 20
    flex.x-Flange 20 Art. No: 309500010
    Galvanized 20

    Content: 100 Metres (€250.00 / 100 Metre)

    €250.00 *
    flex.x-PVC 155
    flex.x-PVC 155 Art. No: 309750010
    155 mm DIN 4102 - B2

    Content: 100 Metres (€725.00 / 100 Metre)

    Variants from €600.00
    €725.00 *

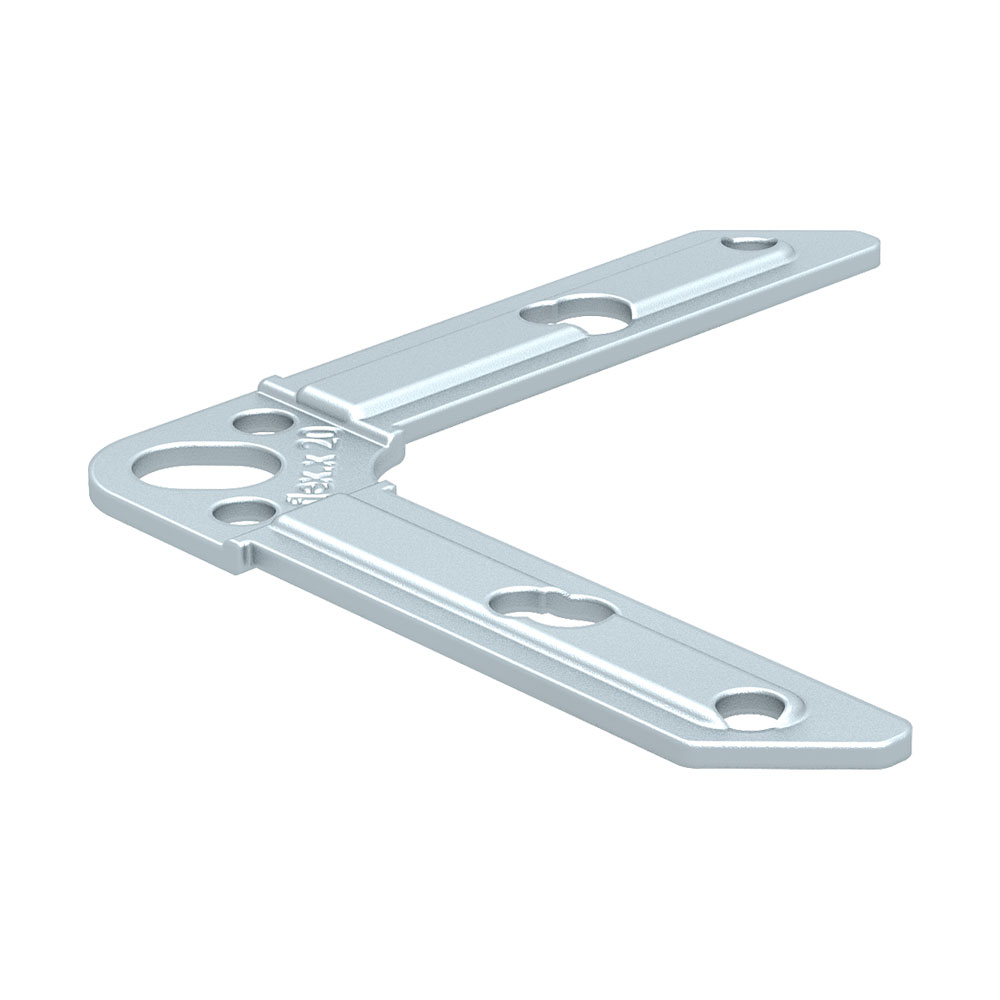

    flex.x-Corner 20
    flex.x-Corner 20 Art. No: 309600010
    Galvanized 20

    Content: 100 Pieces (€30.00 / 100 Piece)

    €30.00 *

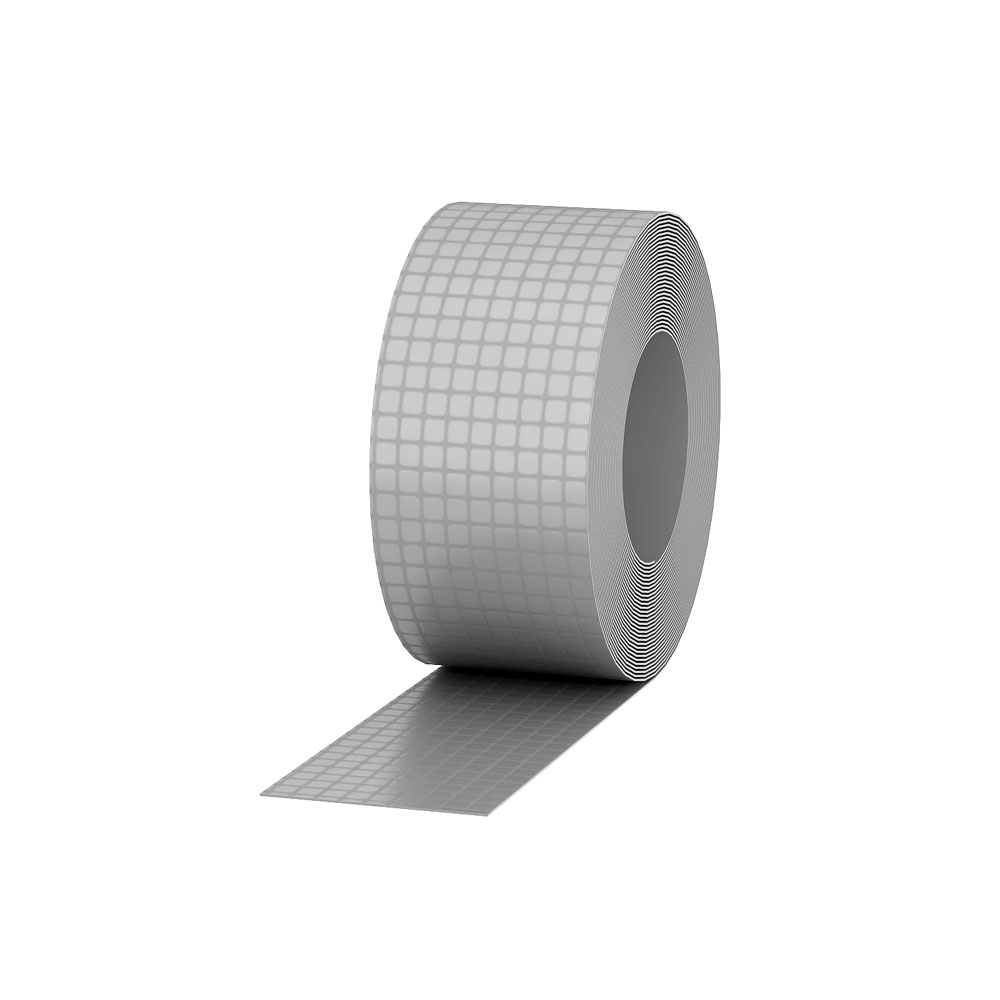

    flex.x-Fusion tape
