Fibre glass/PU - 35/40/35

Art. Nr.: 309120015
  • For construction of flexible connectors in HVAC-systems
  • Suitable for air-tightness class C (TÜV-Nord certified*)
  • Fire resistance: M0 and +400°C/2H
    • Effective length
    Sheet metal

    €5.03 * / 1 Metre

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

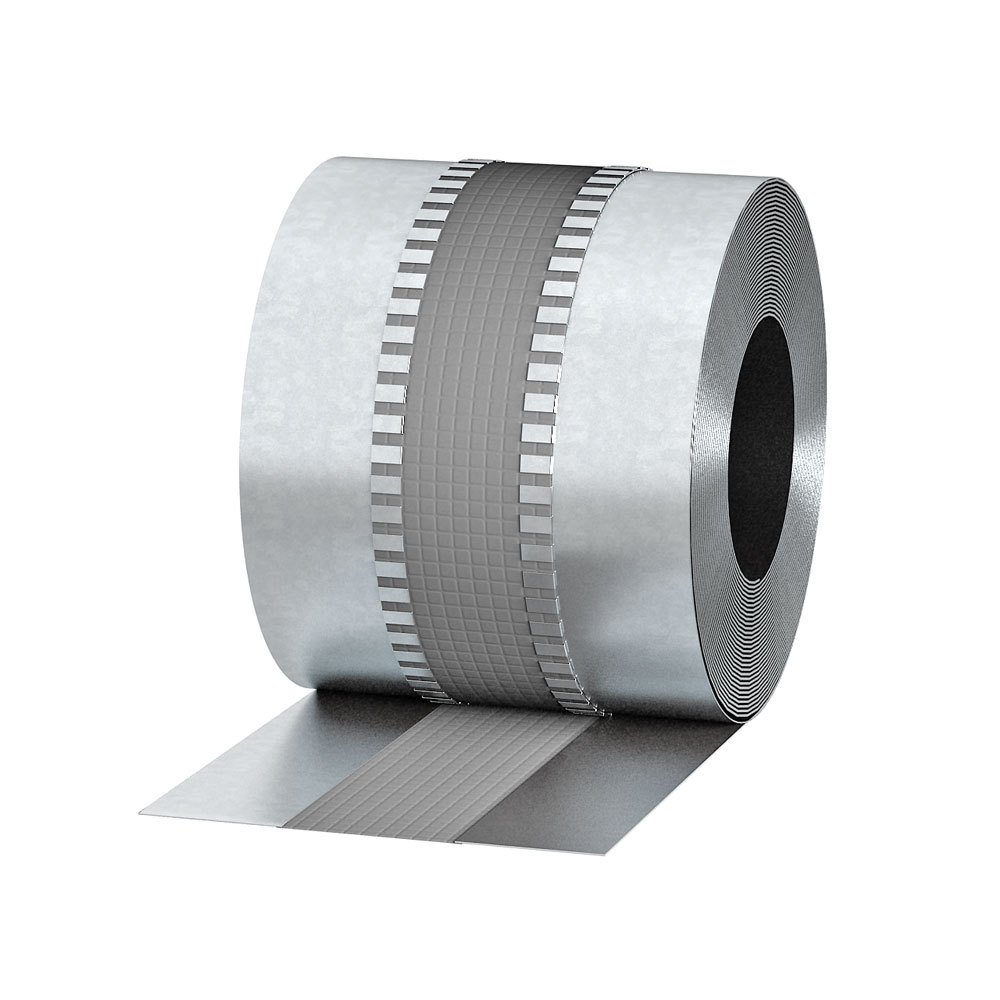

    High-quality flexible connection made of glass fibre/polyurethane for the manufacture of fabric compensators in HVAC systems. By using these flexible connections, vibration transmission in ducts and pipes can be avoided and they also serve as acoustic decoupling.

    The polyurethane-coated glass silk is located between two steel surrounds and the stretched width is 110 mm. The flexible connection made of glass fibre/PU is suitable for tightness class C (TÜV-Nord certified) or ATC 3 and has a temperature resistance of up to +200°C. They also have a fire resistance (M0) and a heat resistance of up to +400°C / 2h.
    Material: Fibreglass/PU
    Effective length: 110 mm
    Sheet metal: Galvanized
    Fire protection class: M0
    Fabric colour: Silver-grey
    Temperature resistance up to: 200 °C
    Temperature resistance from: -50 °C

    Frequently asked questions

    What is the temperature resistance?
    The glass fibre fabric has a heat resistance of up to +500°C. However, the PU coating already evaporates at a temperature of approx. +200°C.
