Fibre glass/Neoprene - 45/210/45

Art. Nr.: 309045010
  • For construction of flexible connectors in HVAC-systems
  • Suitable for air-tightness class C (TÜV-Nord certified*)
  • Fire resistance: M1
    • Effective length
    Sheet metal

    €12.99 * / 1 Metre

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description

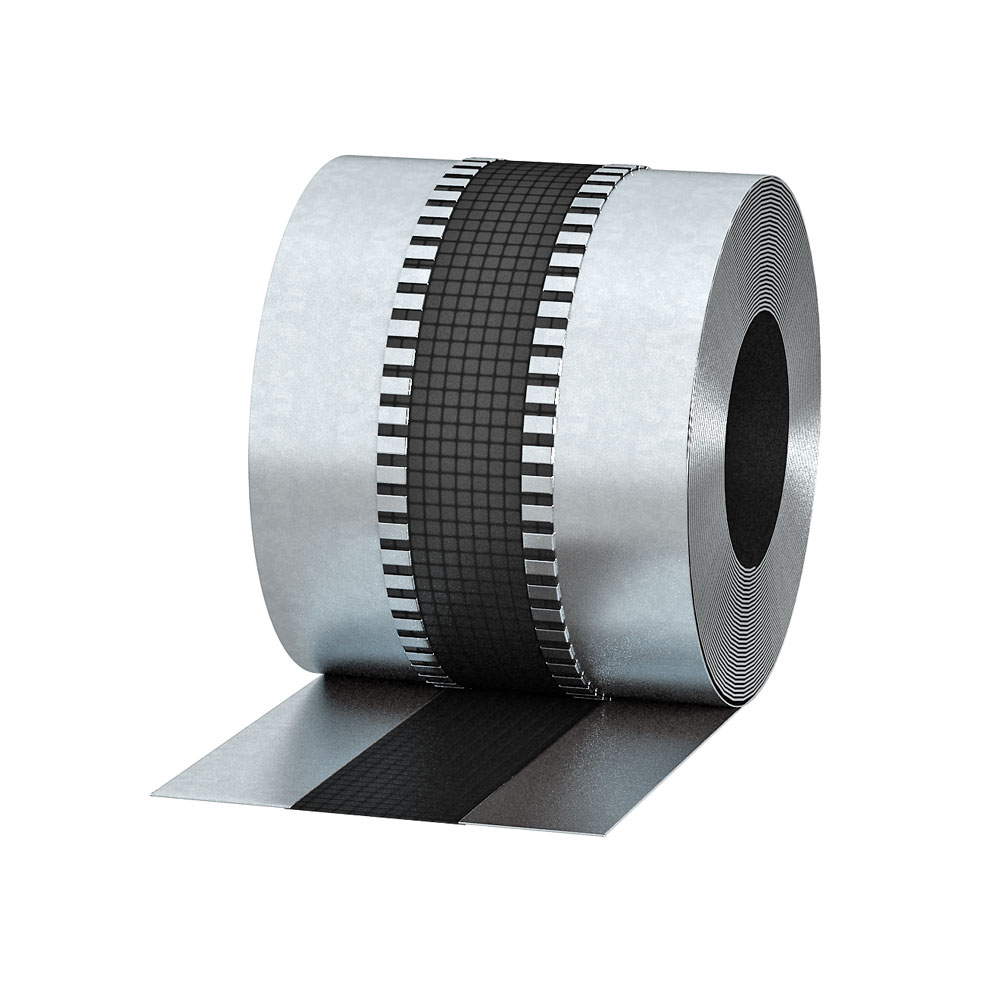

    High-quality flexible connection made of glass silk/neoprene for the manufacture of fabric compensators in HVAC systems. By using these flexible connections, vibration transmission in ducts and pipes can be avoided and they also serve as acoustic decoupling.

    The neoprene-coated glass silk is located between two steel surrounds and the stretched width is 300 mm. The flexible connection is suitable for tightness class C (TÜV-Nord certified) or ATC 3 and the fire resistance is specified as M1 as non-flammable.
    Material: Fibreglass/Neoprene
    Effective length: 300 mm
    Sheet metal: Galvanized
    Fire protection class: M1
    Fabric colour: Black
    Temperature resistance up to: 100 °C
    Temperature resistance from: -20 °C
    309030010_Flexible_connector-Fibreglass_Neoprene_en.pdf (363.84KB)

    CrossSelling

    flex.x-PVC 130
    flex.x-PVC 130 Art. No: 309740010
    130 mm DIN 4102 - B2

    Content: 100 Metres (€690.00 / 100 Metre)

    Variants from €600.00
    €690.00 *

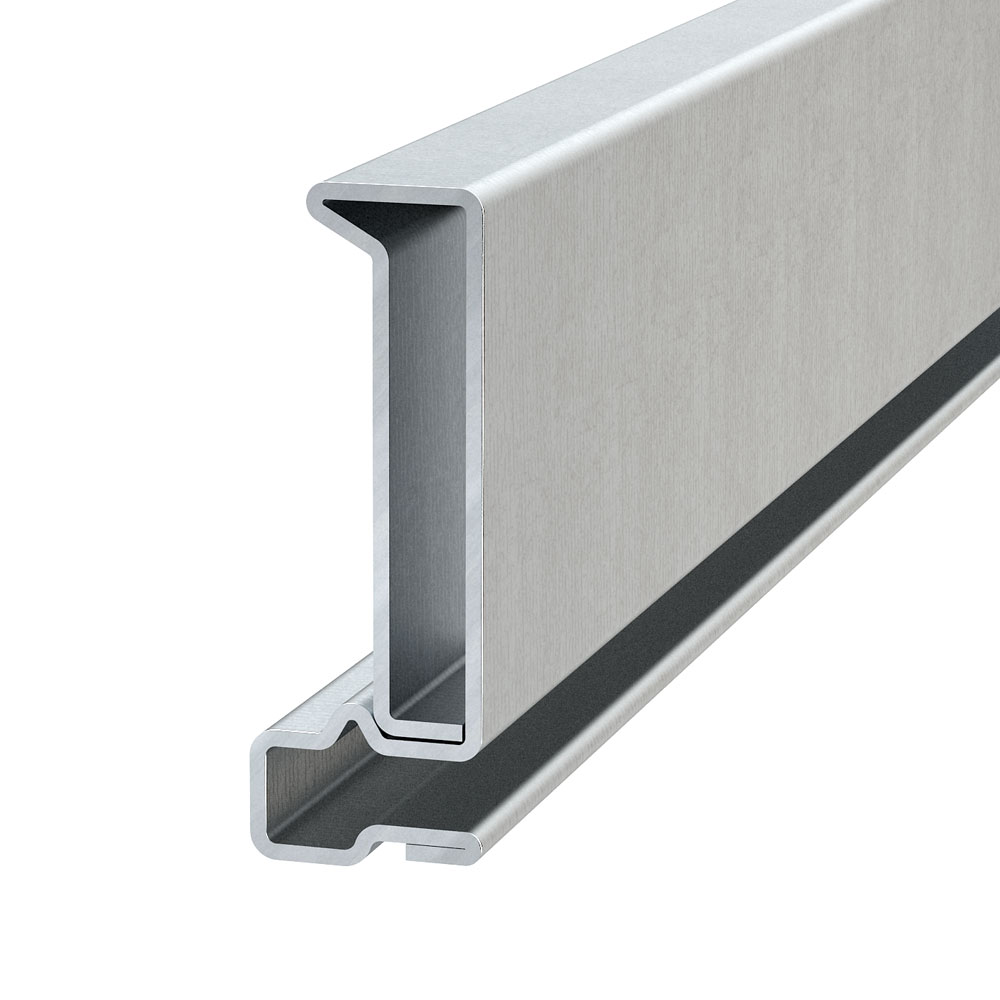

    flex.x-Flange - 30
    flex.x-Flange - 30 Art. No: 309510010
    Galvanized 30

    Content: 100 Metres (€315.00 / 100 Metre)

    Variants from €250.00
    €315.00 *

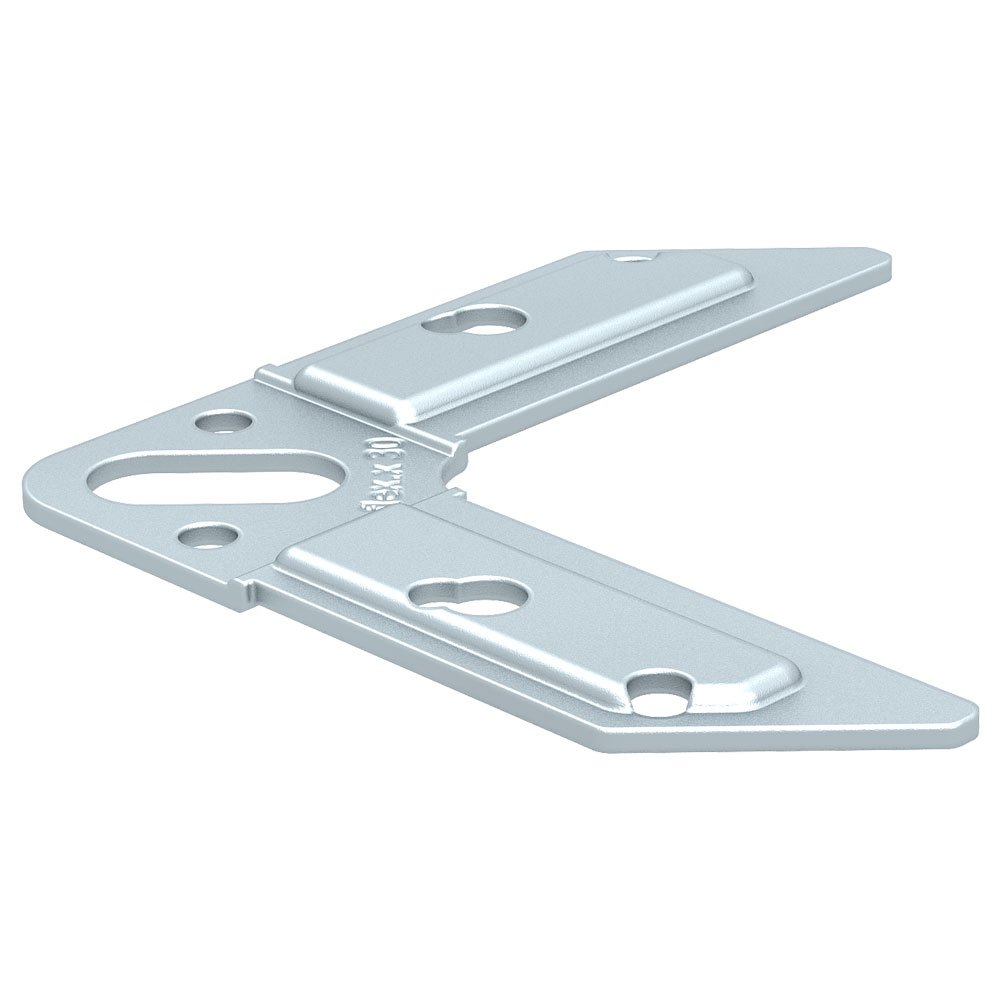

    flex.x-Corner 30
