Fibre glass/Alu - 45/60/45

Art. Nr.: 309050010
Effective length

€11.23 * / 1 Metre

VAT not included

*Log in to see your individual price
Don't have an account? Register
Description

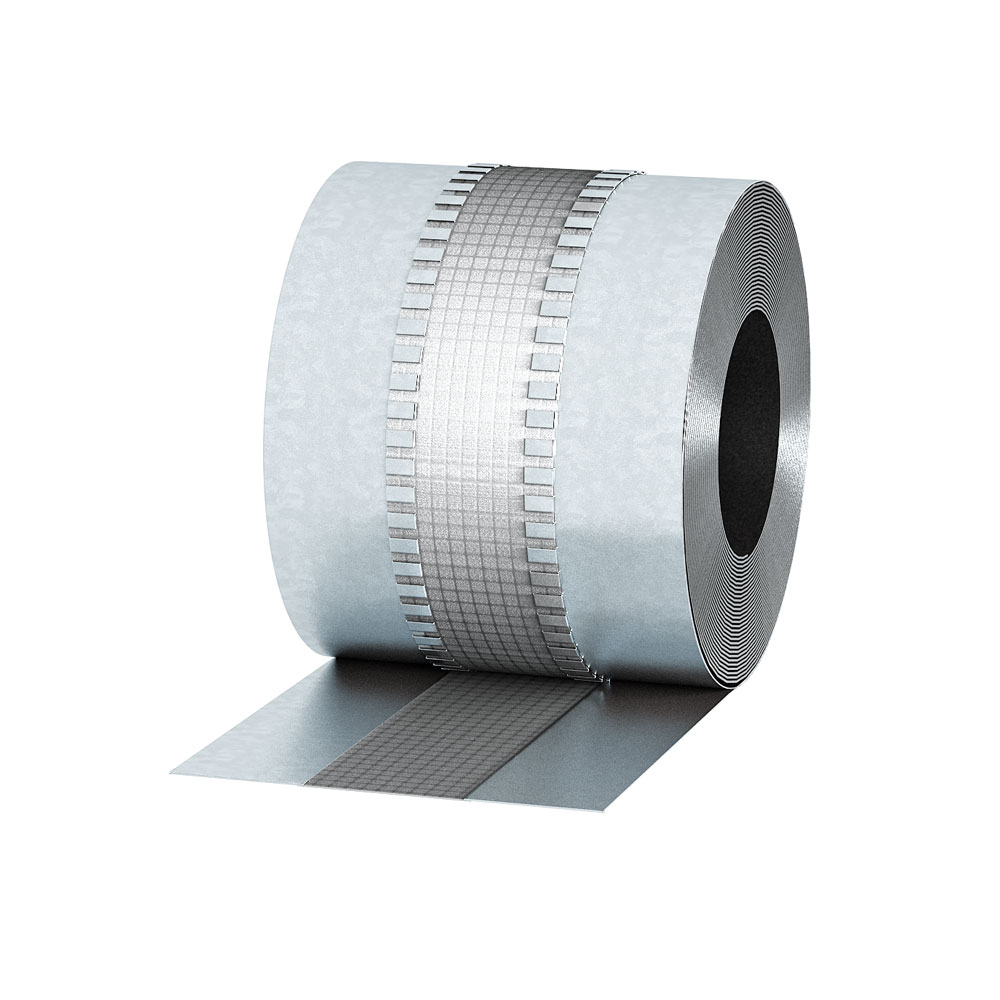

High-quality flexible connection made of glass silk/aluminium for the manufacture of fabric compensators in air conditioning systems. By using these flexible connections, vibration transmission in ducts and pipes can be avoided and they also serve as acoustic decoupling.

The glass fibre fabric with aluminium foil on one side is located between two steel surrounds and the stretched width is 150 mm. The flexible connection made of glass silk/aluminium is suitable for tightness class C (TÜV-Nord certified) or ATC 3 and has a temperature resistance of -40°C up to 180°C.
Material: Fibreglass/Aluminium
Effective length: 150 mm
Sheet metal: Galvanized
Fabric colour: Silver-grey
Temperature resistance up to: 180 °C
Temperature resistance from: -40 °C
309050010_Flexible_connector-Fibreglass_Alu_en_2.pdf (151.90KB)

Frequently asked questions

What is the temperature resistance?
The glass fibre fabric has a heat resistance of up to +500°C. However, the aluminium foil already evaporates at a temperature of approx. +180°C.
