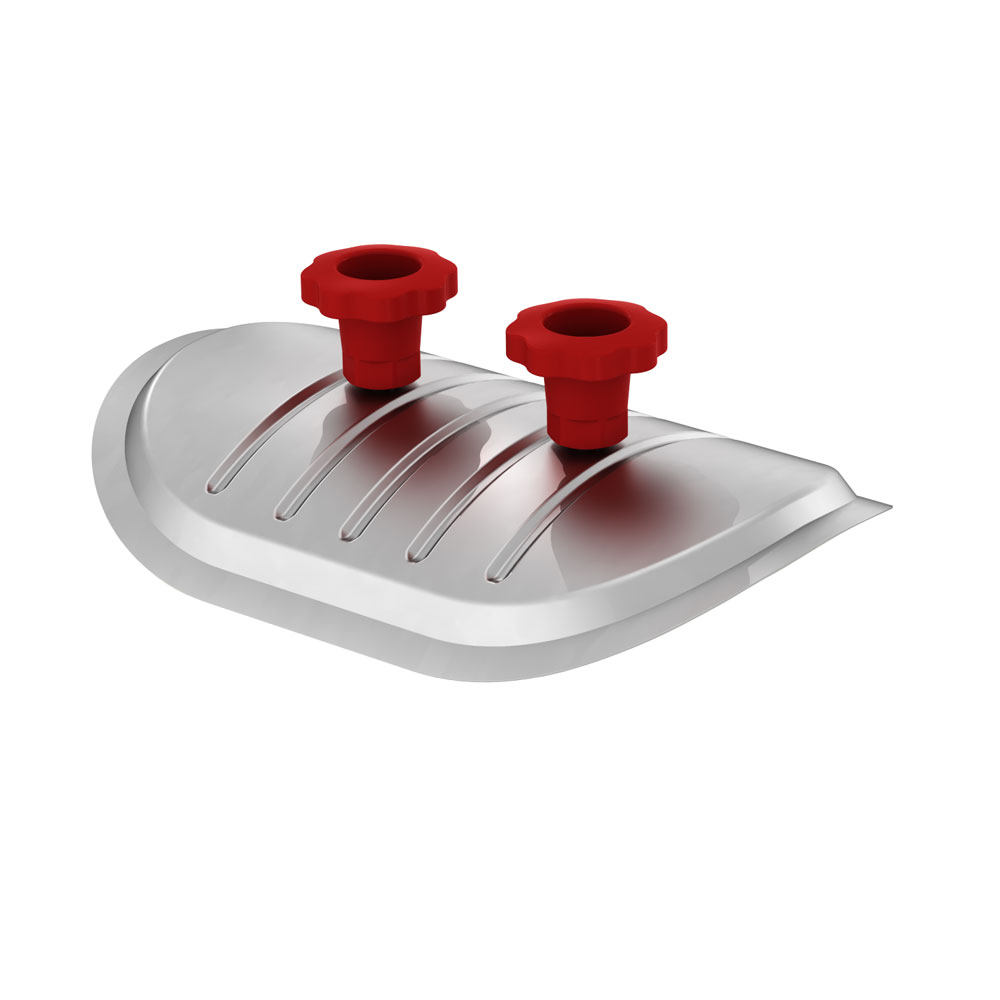

Curved access panel GRD 21 - 20 + 22

Art. Nr.: 308240010
  • For round and oval tubes
  • With polyethylene foam gasket
  • Fixed by two star-shaped hand knobs (red)
    • Dimension
    Material
    Opening

    €7.10 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The access door GRD 21-20+22 has a dimension of 200 x 100 mm and is suitable for spiral seam tubes with Ø 200/224 mm. The GRD inspection cover is a double-shell, pressed inspection cover made of galvanised sheet steel for closing maintenance (inspection) or cleaning openings in circular or oval air ducts. The stable design with flow-optimised inner cover prevents air turbulence. The access panel type GRD 21-20+22 is screwed on by means of two polyamide rotary handles.
    Material: Galvanized
    Dimension: 200 x 100 mm
    Scope of application: Spiral ducts
    Opening: 200/224 mm
    Gasket: Polyethylene foam seal
    308180010_Access_doors_for_spiral_tubes_en.pdf (331.06KB)
    Montagehinweise_Revisionsdeckel_3.pdf (665.06KB)

    CrossSelling

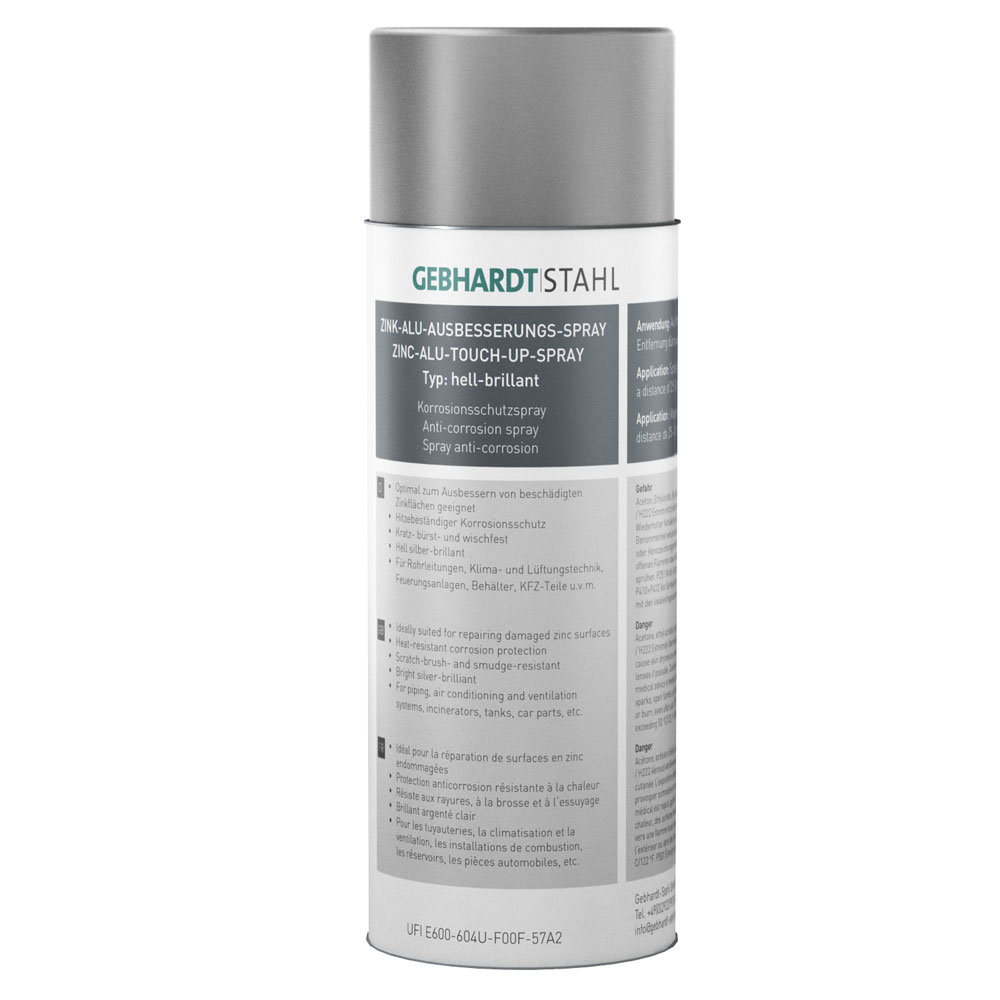

    Zinc-Alu repair spray 400 ml
    Zinc-Alu repair spray 400 ml Art. No: 309420015

    Content: 1 Piece (€8.50 / 1 Piece)

    €8.50 *

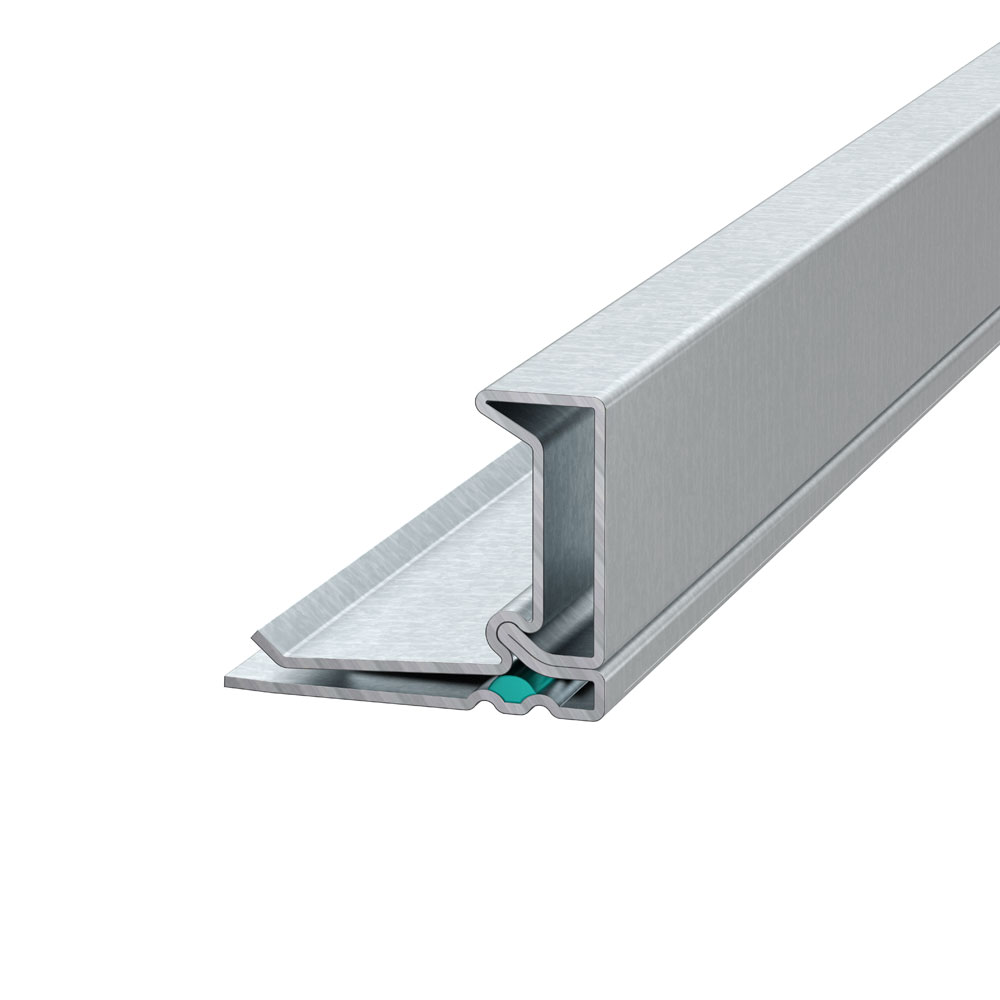

    Premium 20 D - 0,7 mm - BUTYL
    Premium 20 D - 0,7 mm - BUTYL Art. No: 301050402
    Galvanized 0.7 mm 20 5000 mm Butyl

    Content: 100 Metres (€370.00 / 100 Metre)

    Variants from €360.00
    €370.00 *

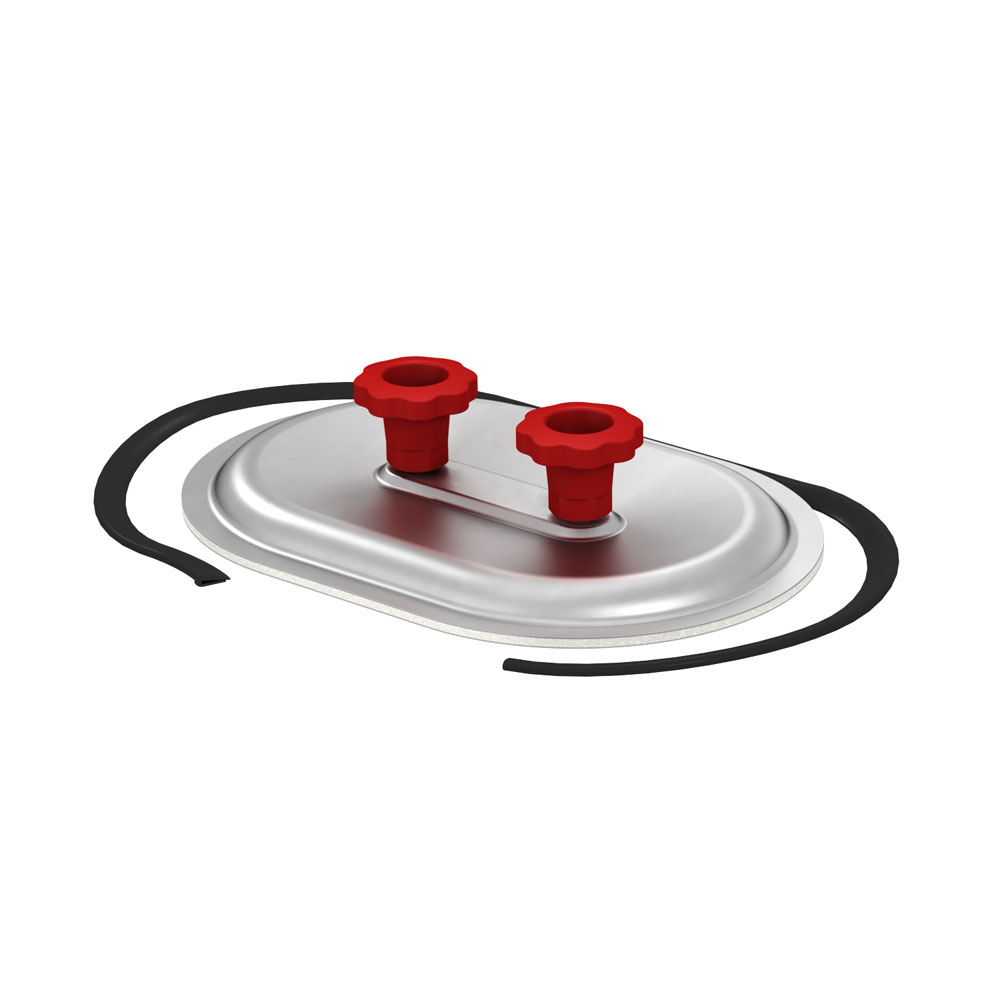

    Access Door ID K 53
    Access Door ID K 53 Art. No: 308030015
    Galvanized 500 x 300 mm

    Content: 1 Piece (€28.90 / 1 Piece)

    Variants from €7.50
    €28.90 *

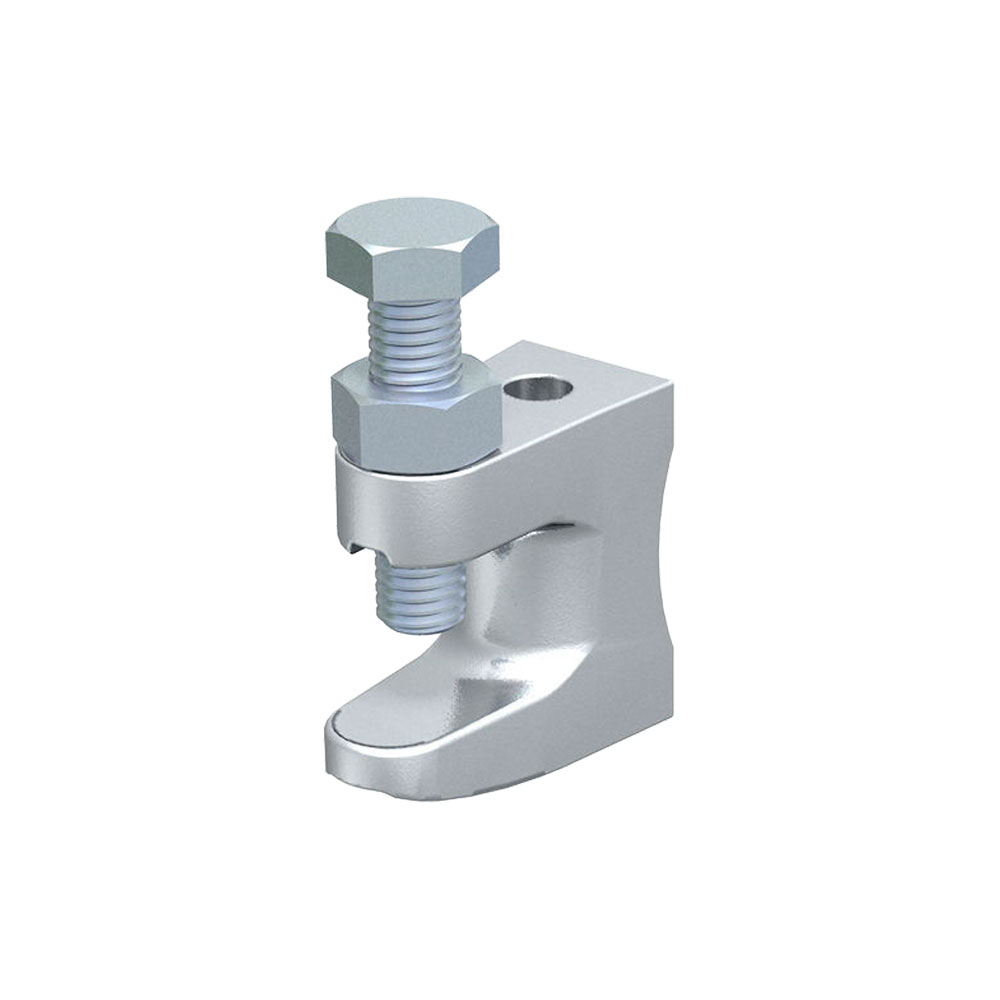

    Beam clamp 9 mm
