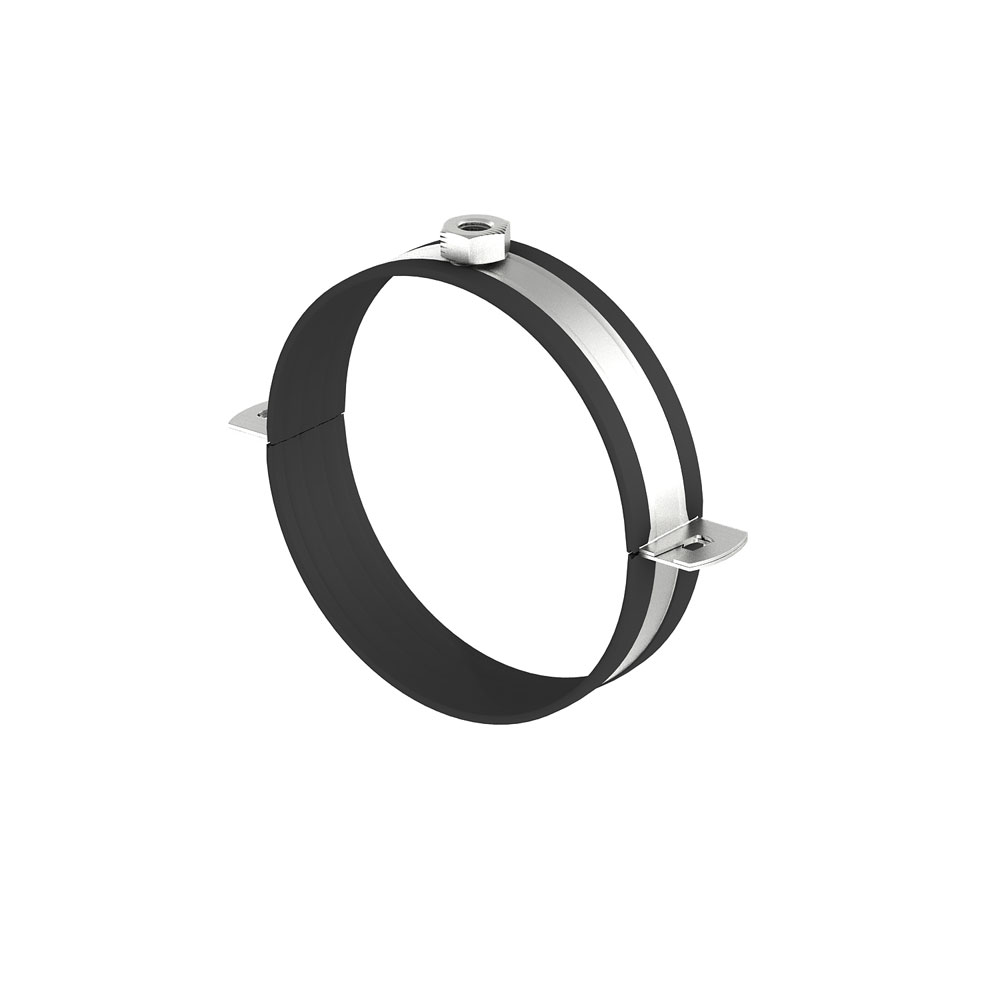

Clamp 125 mm - with insulation rubber

Art. Nr.: 315450010
  • Galvanized steel with insulation rubber
  • Welded on combination nut M8/M10
  • Quick and convenient installation as a result of wide opening angles
    • Insulating insert
    Size

    €2.20 * / 1 Piece

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    The 125 mm pipe clamp is the ideal solution for professional installation of round air duct systems or spiral ducts. Our high-quality pipe clamps have a welded-on M8/M10 combination nut and the two screw plugs allow good adjustment to pipe tolerances. Thanks to the wide opening angle, practical installation of the 125 mm pipe clamp is quick and easy, and for pipe diameters ≤ 400 mm, installation is also facilitated by a snap-in swivel lock.

    For effective acoustic decoupling, our pipe clamps are equipped with an insulation rubber, which of course, is both silicone-free and halogen-free with a temperature resistance of -30°C to +80°C. This offers a wide range of possible applications.
    Lateral swivel lock: Yes
    Material: Galvanized
    Size: 125 mm
    Insulating insert: with rubber
    Connection thread: M8/M10
    315410010_Rohrschelle_80-400_en.pdf (136.91KB)
    315590010_Rohrschelle_450-1250_en.pdf (152.54KB)

    CrossSelling

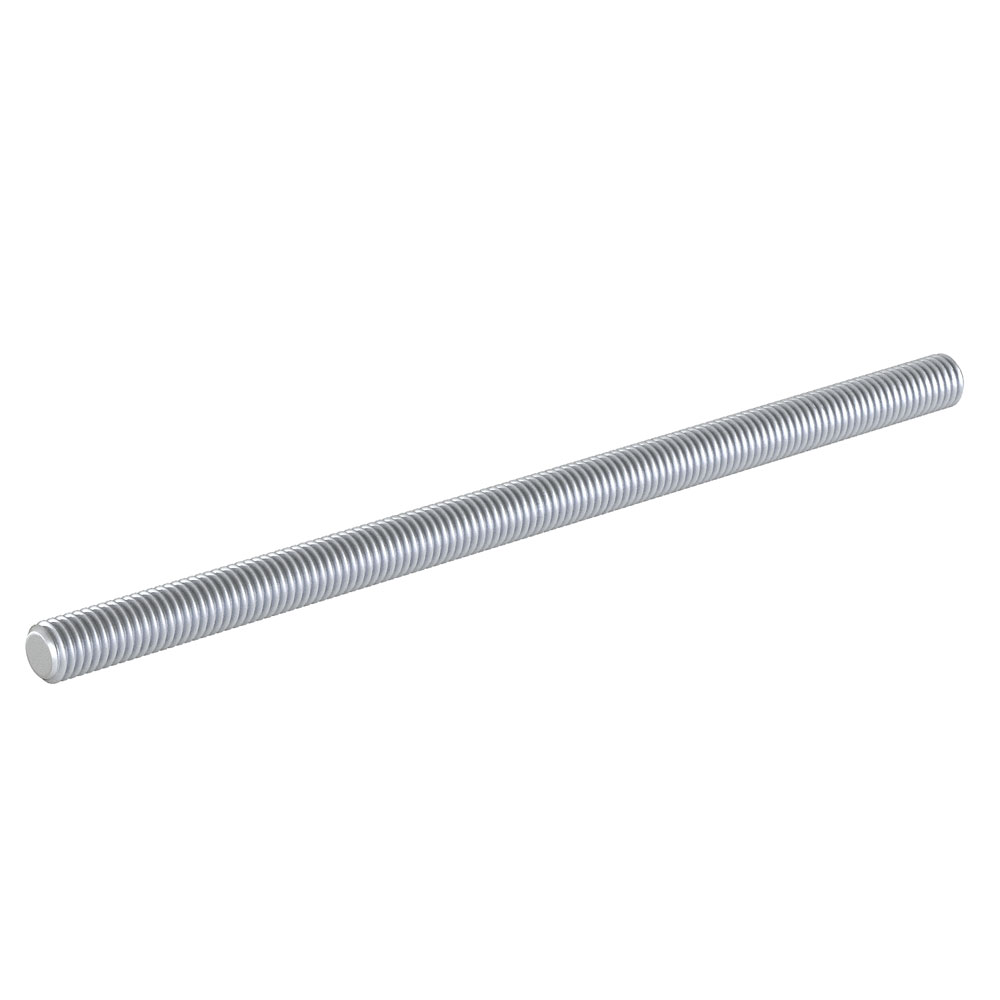

    Threaded rod - M8 x 3 m
    Threaded rod - M8 x 3 m Art. No: 314140020
    M8 3000 mm

    Content: 100 Pieces (€425.00 / 100 Piece)

    Variants from €80.00
    €425.00 *

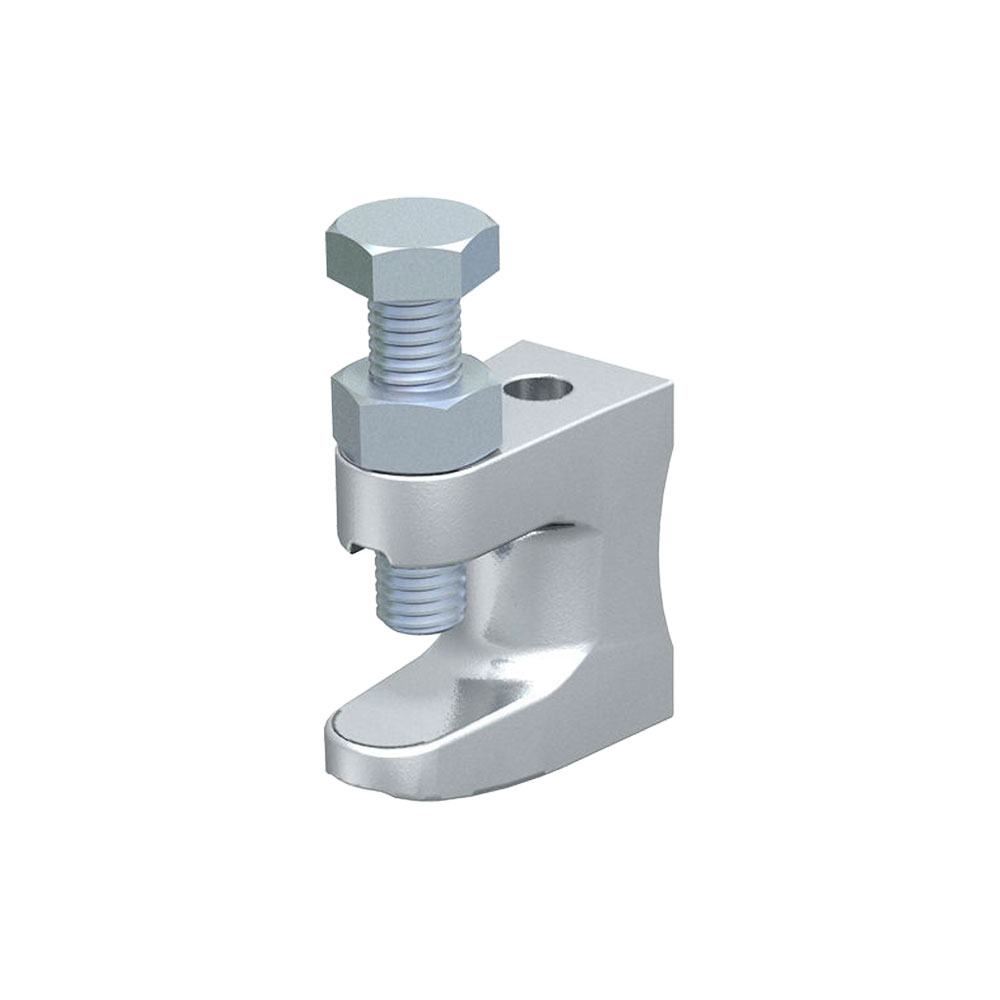

    Beam clamp M8
    Beam clamp M8 Art. No: 313140008
    M8

    Content: 100 Pieces (€245.00 / 100 Piece)

    €245.00 *

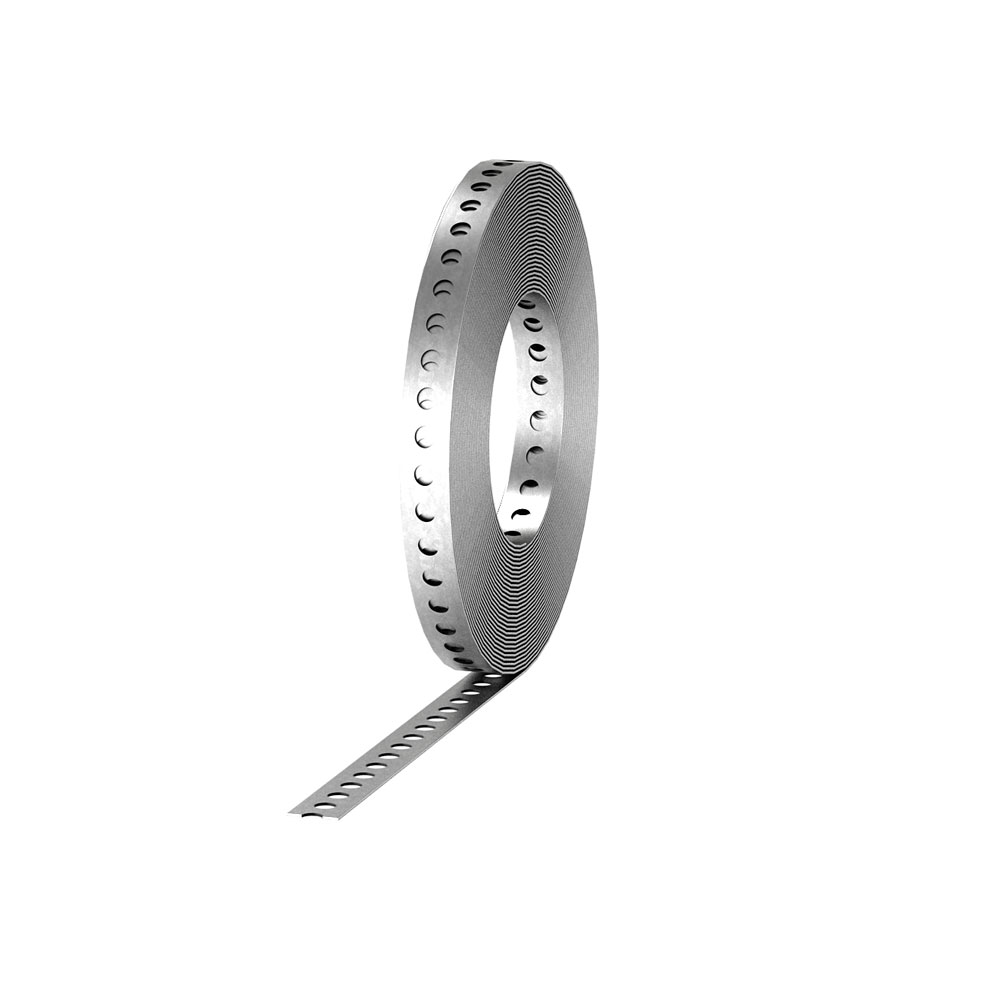

    Perforated tape 17 x 0,6 mm
