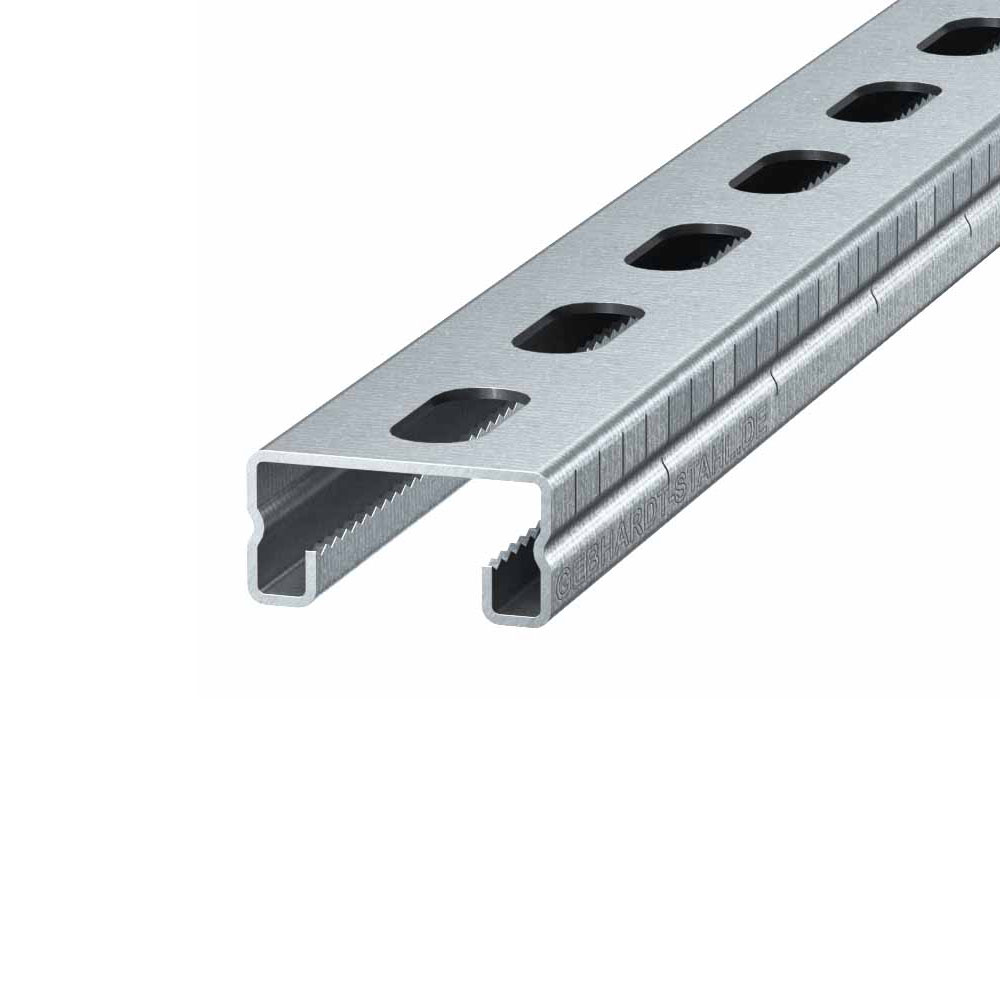

Channel section - 41/21 x 1,5 mm - with serration

Art. Nr.: 305330113
  • Easy to accurately cut and position the fixtures due to the scale on the side of channel.
  • Firm grip to sliding nuts, even under intense shear forces, due to serration.
  • Galvanised modular channel sections for mounting pipe supports, ventilation ducts and cable trays
  • According the requirements of DW 144
    • Flange
    Length
    Material thickness

    €900.00 * / 100 Metres

    VAT not included

    *Log in to see your individual price
    Don't have an account? Register
    Description
    With a hole pattern of 30 x 13 mm and a spacing of 50 mm, our mounting rail 41/21 proves to be a versatile solution for mounting piping, air ducts and cable ducts. The pronounced serration in the channel provides the sliding nut with a secure hold for absorbing high transverse loads, such as those that occur during vertical assembly. Another advantage of our strut is the lateral scaling, which makes it much easier to cut the channel to length and place attachments during assembly. The mounting rail, made of S250 GD, offers maximum flexibility while being easy to handle. The material thickness of our mounting rail is 1,5 mm and the length is 3,000 mm. Our 41/21 x 1,5 mm mounting rail also meets the requirements of DW 144 and is suitable for use in dry interior rooms.
    Material: Galvanized
    Material thickness: 1.5 mm
    Flange: 41x21
    Tested to: BS 6946:1988
    Length: 3000 mm
    EN_GS_statische_Berechnung_Montageschiene_41-21_2022_5.pdf (409.15KB)
